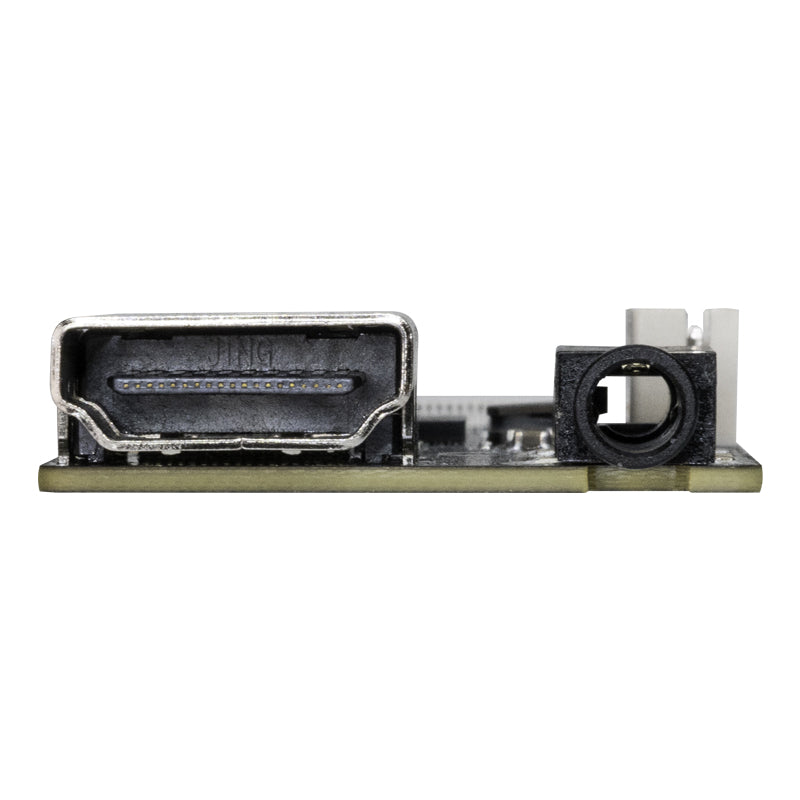

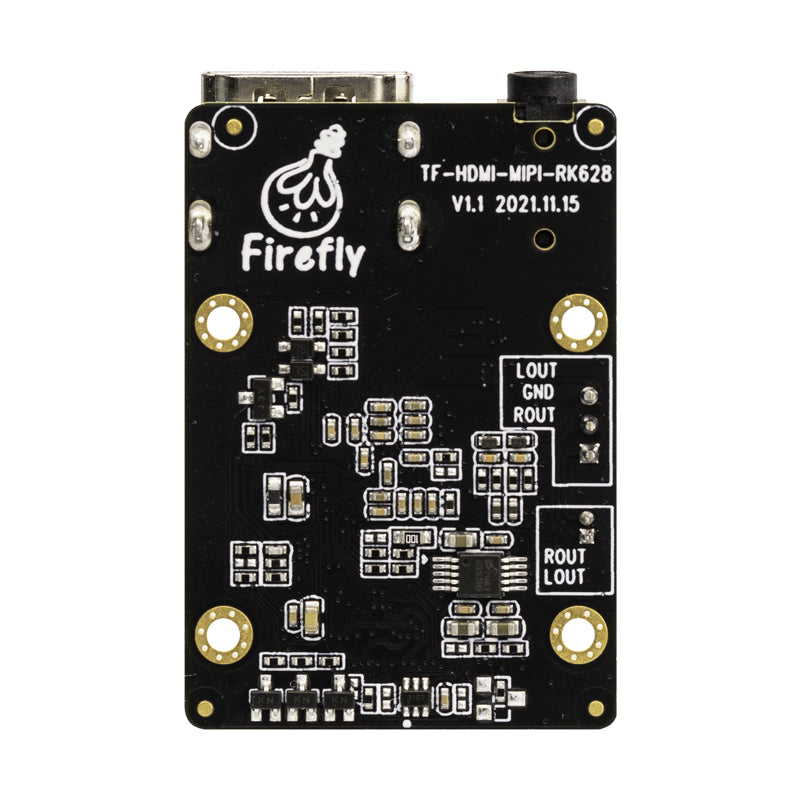

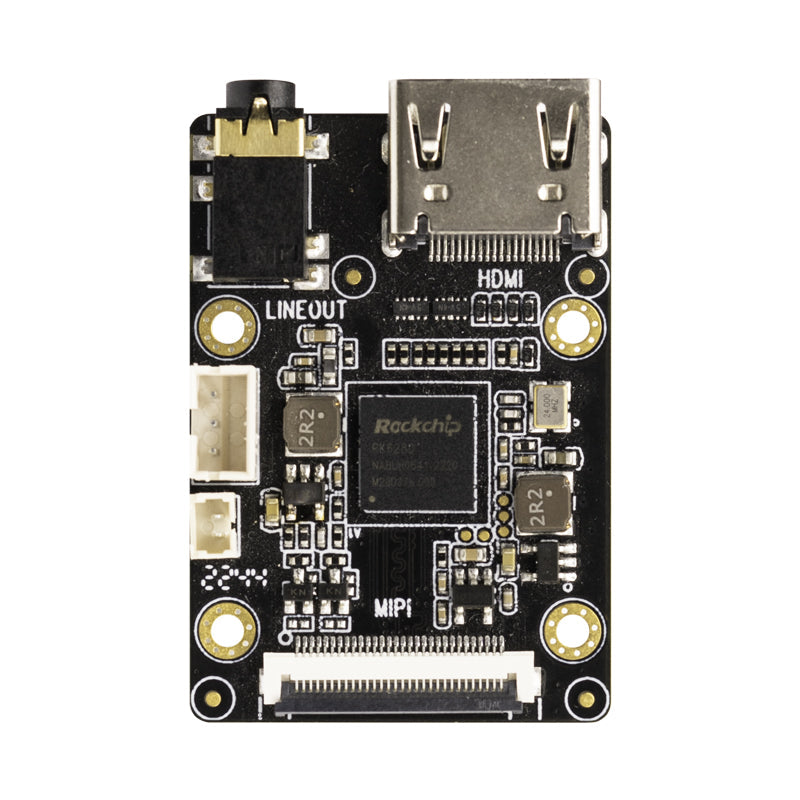

TF-HDMI-MIPI CSI Drive Board

The HDMI-TO-MIPI-CSI driver board, using the video bridge chip RK628D, can realize the conversion requirements of an HDMI video signal to a MIPI CSI signal. It is applied to intelligent micro-projectors, intelligent displays, video acquisition, and conversion products.

Size: 43.5mm * 30 mm

HDMI RX Interface:

• Compliant with HDMI 1.4/HDMI 2.0
• Supports 8/10bit per component video format
• Supports rgb888/yuv420
• Supports Max resolution 4K@60fps (yuv420)

MIPI CSI Interface:

• Compliant with MIPI DPHY V1.2
• Support Format: YUV422
• Support Resolution: 3840x2160@30fps, 1920x1080@60fps, 1280x720@60fps, 720x480@60fps

LINEOUT Interface:

• Same audio output: 3.5 mm headphone interface*1, 3P-2 mm*1, 2P-1.25 mm*1
