Firefly ROC-RK3588S-PC ARM Single Board Computer

This mini single board computer is equipped with Rockchip RK3588S new generation 8-core 64-bit processor and can be configured with up to 32GB RAM. It has 8K video encoding and decoding capabilities, provides rich interfaces, and supports NVMe SSD expansion; it supports various operating systems. This sbc computer can be used for edge computing, artificial intelligence, cloud computing, VR and AR.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• New Generation Of High-end Processors: RK3588S is Rockchip's new generation flagship AIoT chip, using 8nm lithography technology, equipped with 8-core 64-bit CPU, and clocked at up to 2.4GHz. It integrates ARM Mali-G610 MP4 quad-core GPU, built-in AI accelerator NPU, provides 6Tops computing power, and supports mainstream deep learning frameworks. The powerful RK3588S can show more optimized performance in various AI application scenarios.
• 8K Video Encoding And Decoding: Supports 8K@60fps video decoding and 8K@30fps video encoding, and also supports encoding and decoding simultaneously — achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding.
• Super-large 32GB RAM: Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed. It can meet the application requirements of products with large RAM and large storage.
• Multi-channel Input And Output: With HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DVP video input interfaces, it supports multi-channel 8K video output and 4K video input — up to seven-screen output with different displays can be achieved.
• Strong Network Communication Capability: Integrated with PCIe3.0/GMAC/SDIO3.0/USB3.0, it can be extended to multi-channel Gigabit Ethernet, WiFi 6/Bluetooth, 5G/4G LTE, enabling network communication to have a higher speed.
• NVMe SSD, Massive Capacity: This single board PC M.2 PCIe2.0 (1Lane) interface can connect 2242 NVMe SSD large-capacity storage devices, allowing the device to easily expand TB-level storage capacity.

• Strong Network Communication Capability: Onboard 1000Mbps RJ45 Ethernet, support for 2.4GHz/5GHz dual-band WiFi and Bluetooth 4.2, powerful network communication capabilities make data transmission more stable and faster.
• Support Various Operating Systems: Supports Android 12.0, Ubuntu desktop and server versions, Debian11, Buildroot, Kylin and UOS operating systems. Supports RTLinux with excellent real-time performance. It also supports UEFI Boot, runs stably and reliably, and provides a safe and stable system environment for product development and production.


Application

• The mini SBC can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain, smart security, smart home, intelligent retail and smart industry.

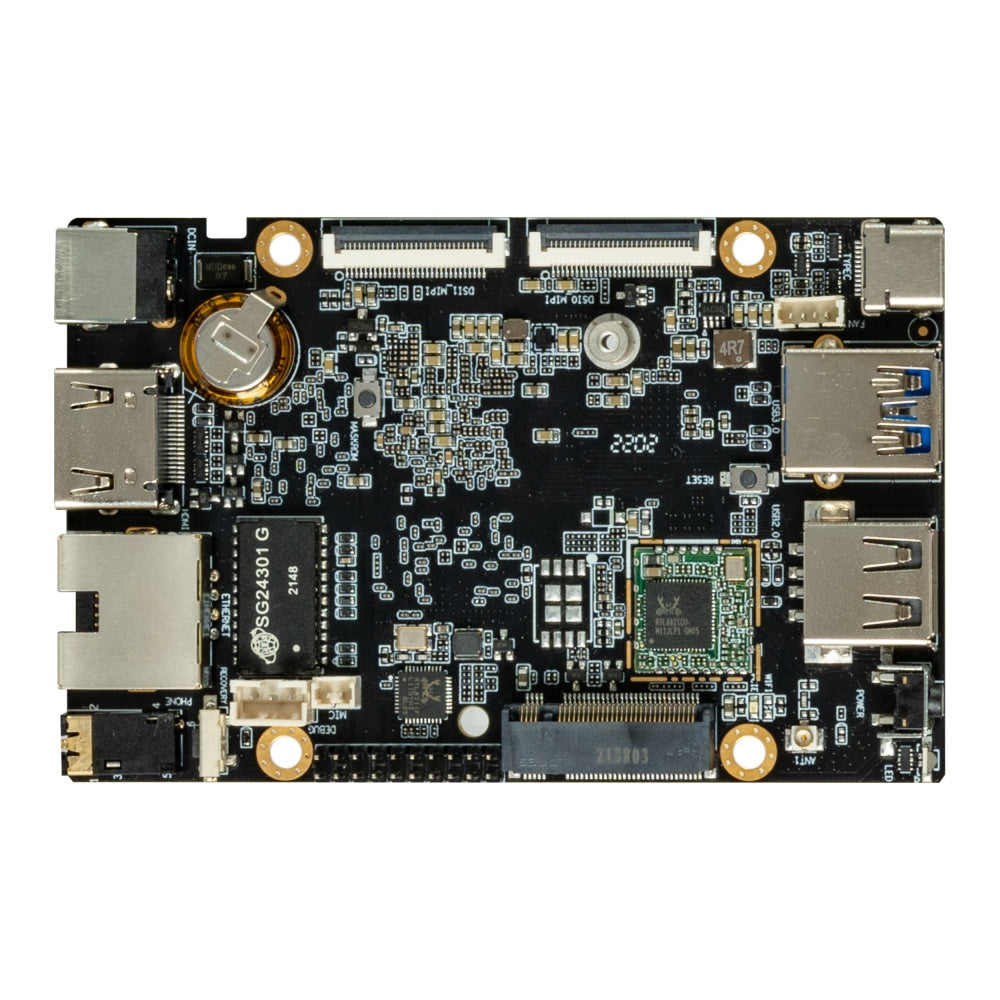

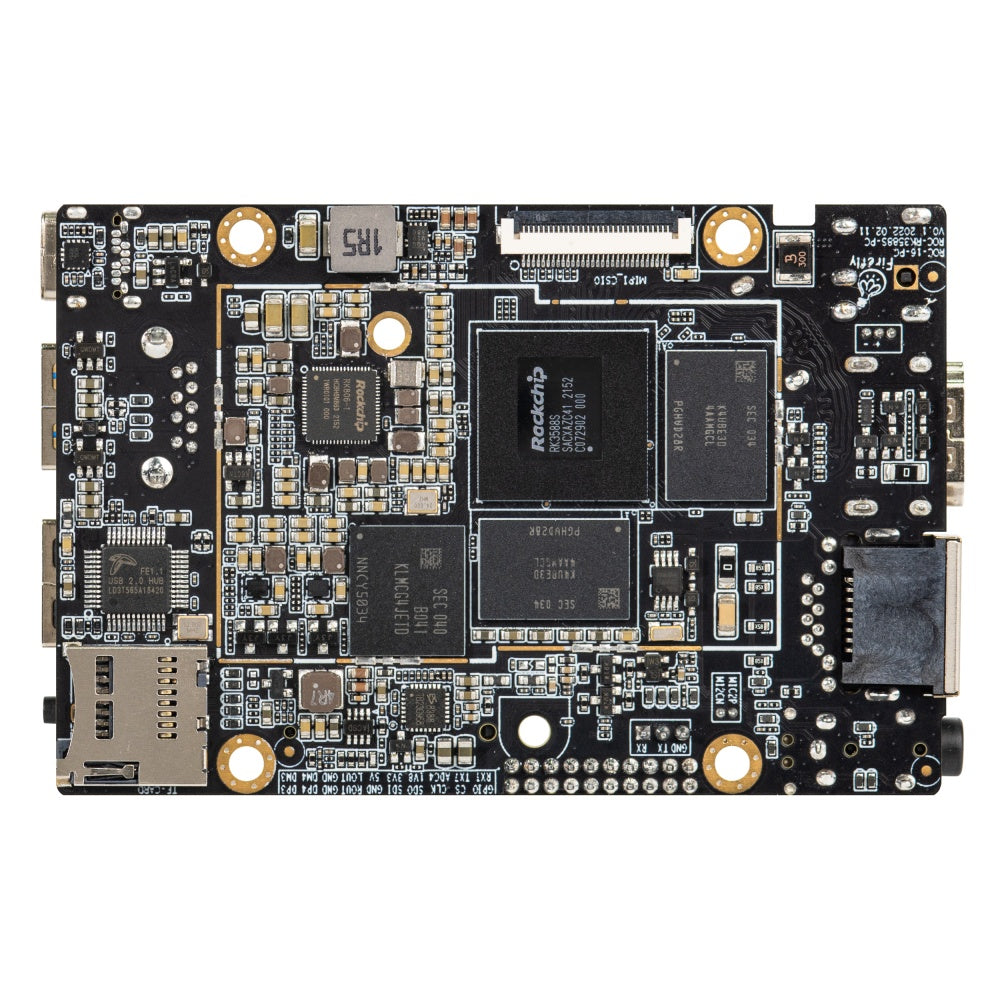

Hardware Overview
