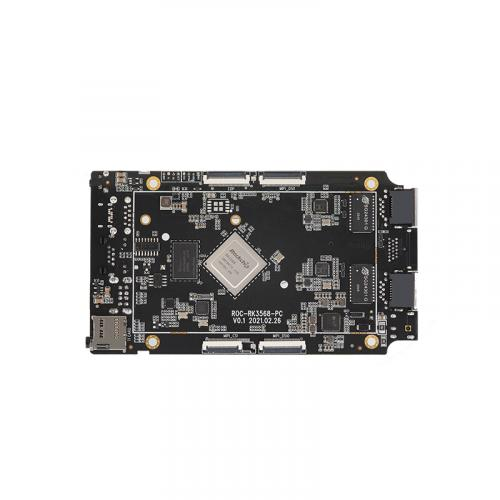

ROC-RK3568-PC Quad-Core ARM Single Board Computer

ROC-RK3568-PC supports M.2 and SATA3.0 interfaces, and can expand large-capacity hard drives; it has dual Gigabit Ethernet ports and supports WiFi 6 wireless transmission; the unique Control Port interface can connect RS485 and RS232 devices; it supports multiple operating systems and multiple startup methods; it is equipped with dedicated applications and player forums, and geek gameplay is endless.

• Product Wiki: Click Here

Feature

• RK3568 Quad-core 64-bit Processor: RK3568 quad-core 64-bit Cortex-A55 processor, utilizing the new ARMv8.2-A architecture, with a maximum frequency of 2.0 GHz, for greatly improved performance. This processor features 22nm advanced technology, resulting in low power consumption and high performance.
• 8GB Large Memory Capacity: The maximum memory capacity can reach 8GB, the bit width can reach 32Bit, and the frequency can reach up to 1600MHz; making data more secure and reliable, and meeting the requirements of large memory product application scenarios.
• Integrated GPU, VPU, NPU Coprocessor: It integrates a dual-core GPU, a high-performance VPU, and a high-performance NPU. The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1; the VPU can achieve 4K 60fps H.264/VP9 video decoding and 1080P 60fps H.264 video encoding; the NPU supports one-click switching of mainstream architecture models such as Caffe/TensorFlow.
• Multiple Display Interfaces, Support for Dual Cameras: With MIPI-CSI x2, MIPI-DSI ×2, HDMI2.0, EDP video interface, it can support up to three screens with different display output; built-in 8M ISP image signal processor, it can support dual cameras and HDR function; the video input interface can be used to connect external cameras or expand the input capacity of multiple cameras.

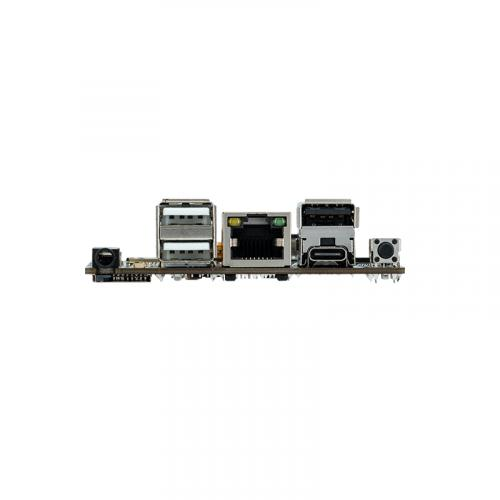

Hardware Overview
