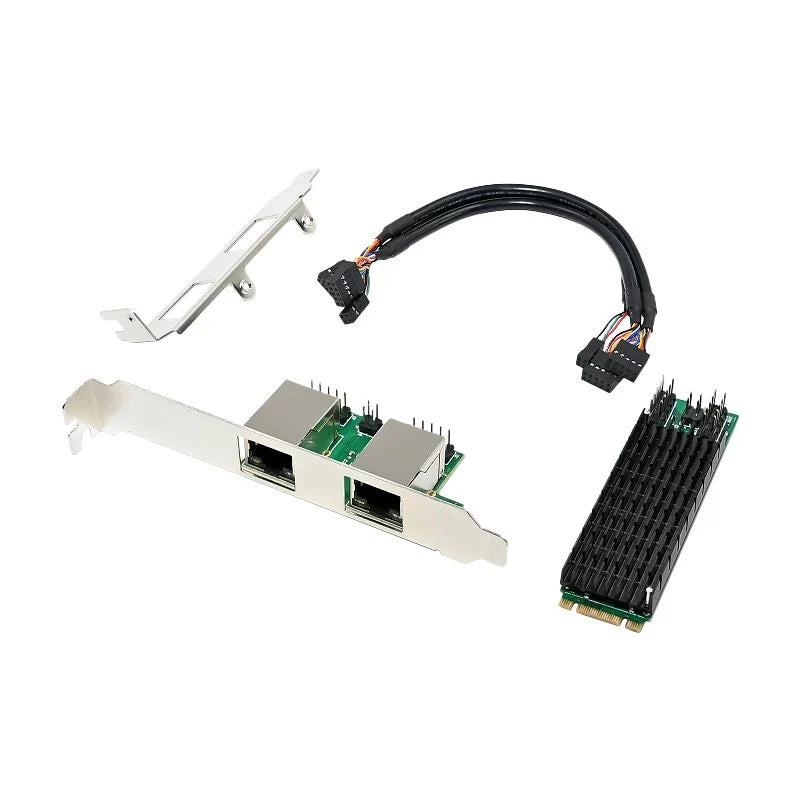

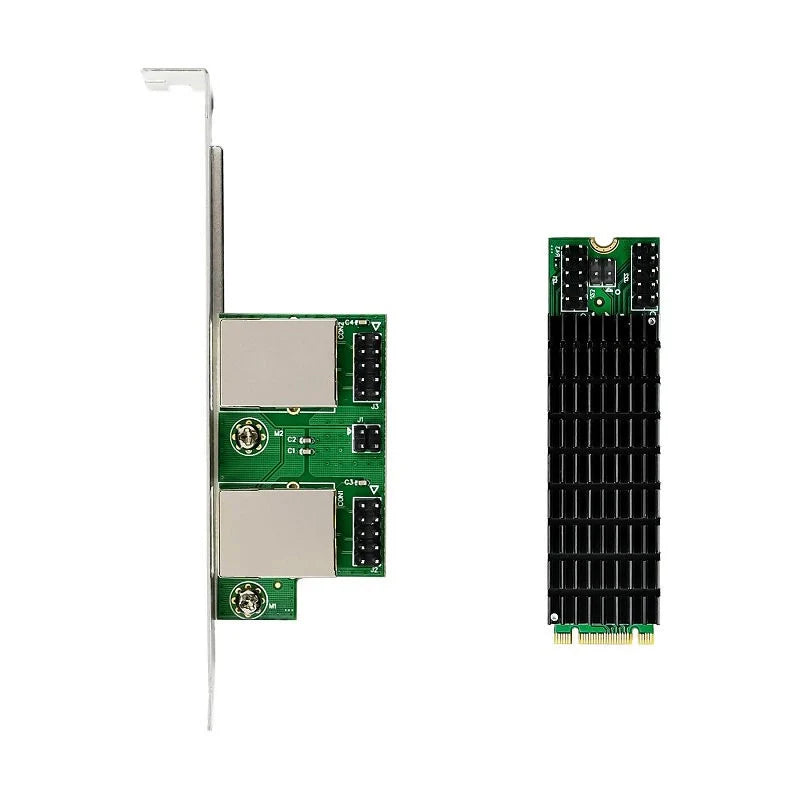

M.2 Dual Port 2.5Gbps PCIe Gigabit LAN Adapter

• Supports PCI Express 2.1
• Supports 2 high-performance 2.5-Gigabit LAN ports
• Auto-negotiation with Extended Next Page function (XNP)
• Compatible with NBASE-TTM Alliance PHY specification
• Supports swap/polarity/skew correction
• Crossover detection and auto-correction
• Supports 1-lane 2.5/5Gbps PCI Express bus
• Supports hardware ECC (Error Correction Code) function
• Supports hardware CRC (Cyclic Redundancy Check) function
• Supports transmit/receive on-chip buffers
• Supports PCI MSI (Message Signaled Interrupt) and MSI-X
• Supports power-down/power-down saving/PHY disable mode
• Supports ECMA-393 ProxZzzy standard for hibernation host
• Supports LTR (Delay Tolerance Report)
• Supports PCIe L1 substates L1.1 and L1.2
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports IEEE 1588v1, IEEE 1588v2, IEEE 802.1AS time synchronization
• Supports full-duplex flow control (IEEE 802.3x)
• Supports jumbo frames up to 16K bytes
• Supports standard and slim chassis

Operating temperature: 0℃ to 55℃
Storage temperature: -40℃ to 70℃
Operating humidity: 10% to 90%RH non-condensing
Storage humidity: 5% to 90%RH non-condensing
Operating system: Windows, Linux, MAC OS, and DOS
