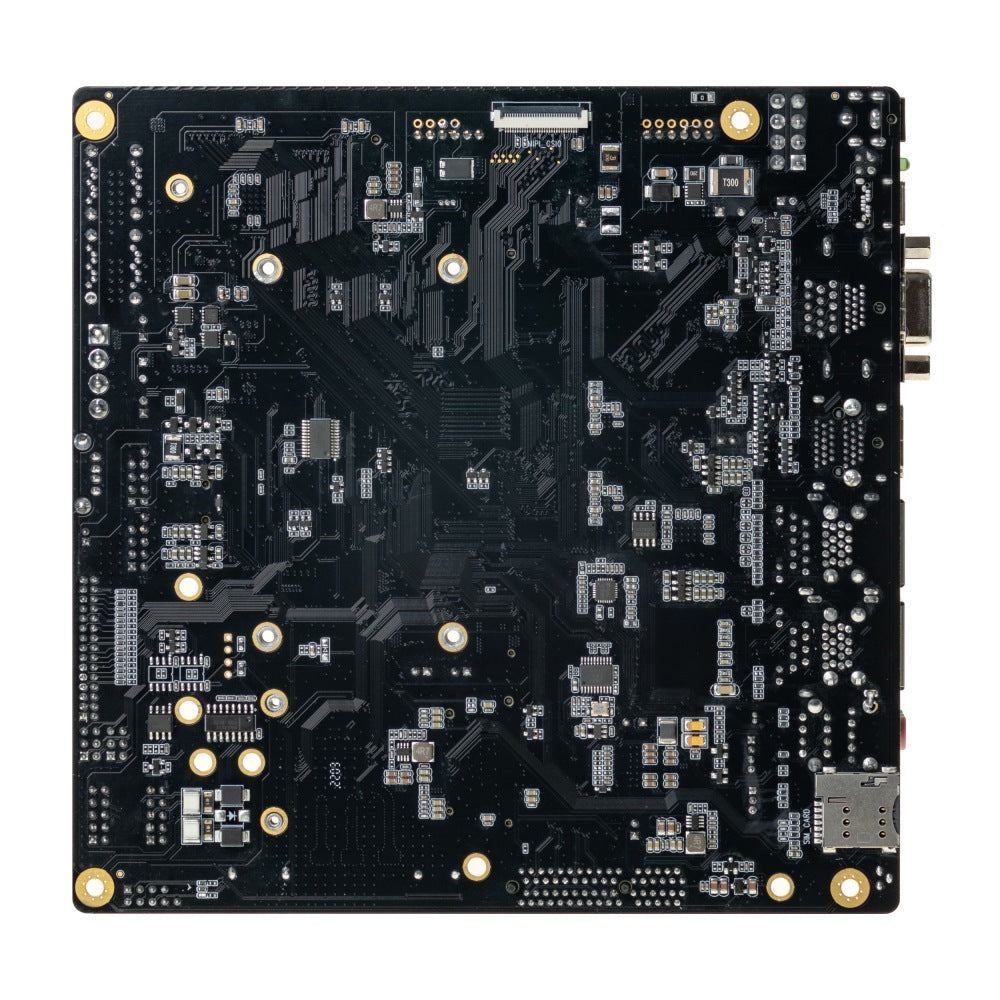

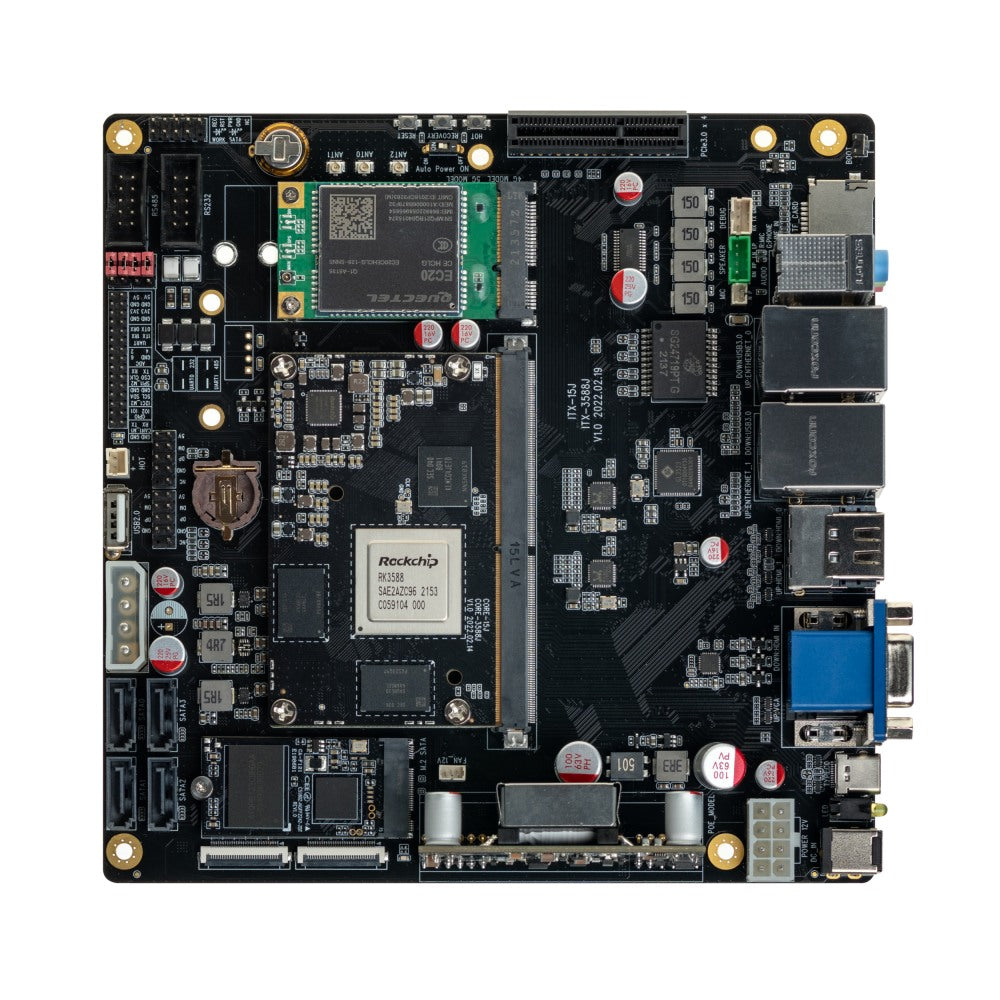

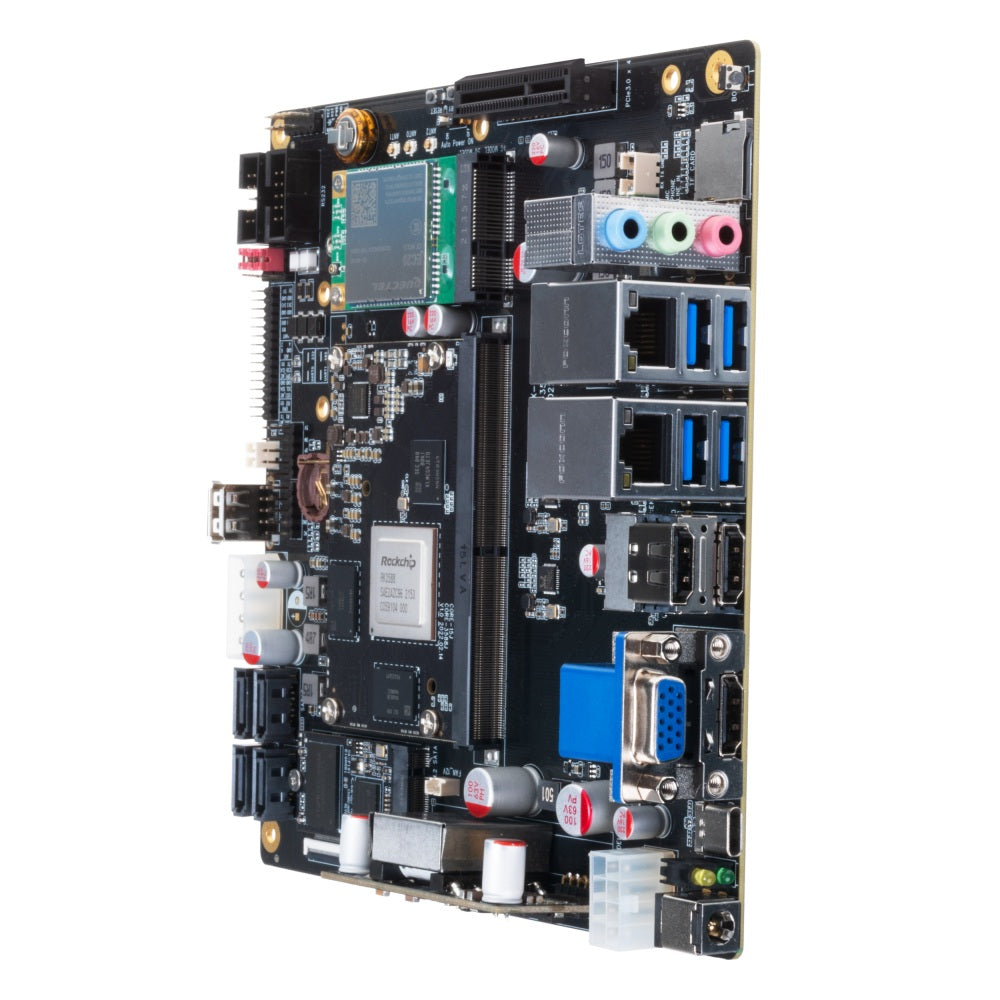

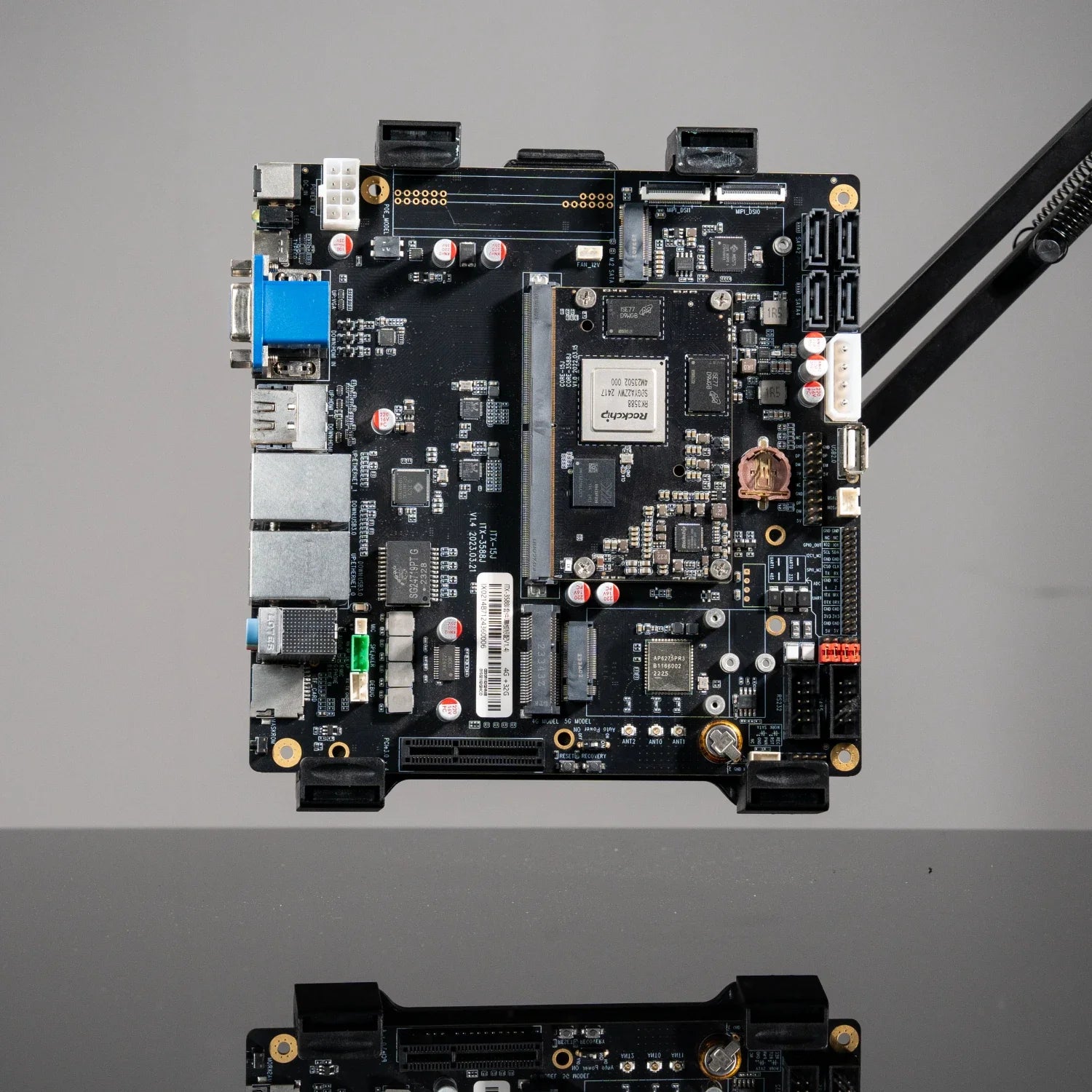

ITX-3588J RK3588 Mini ITX ARM Motherboard

ITX-3588J 8K Artificial Intelligence ITX standard motherboard, adopts Rockchip RK3588 new generation flagship octa-core 64-bit processor, can be equipped with up to 32GB of large memory; supports 8K video encoding and decoding; has rich interfaces, supports multiple hard drives, Gigabit network, WiFi6, 5G/4G expansion and multiple video input and output; provides a variety of power supply methods; supports various operating systems; can be applied to ARM PC, edge computing, cloud server, smart NVR and other fields.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• New-gen AIoT SoC RK3588: RK3588 is Rockchip's new-gen flagship AIoT SoC with 8nm lithography process.
• 8K Video Encoding And Decoding: The mainboard supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also supports encoding and decoding simultaneously — achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding.

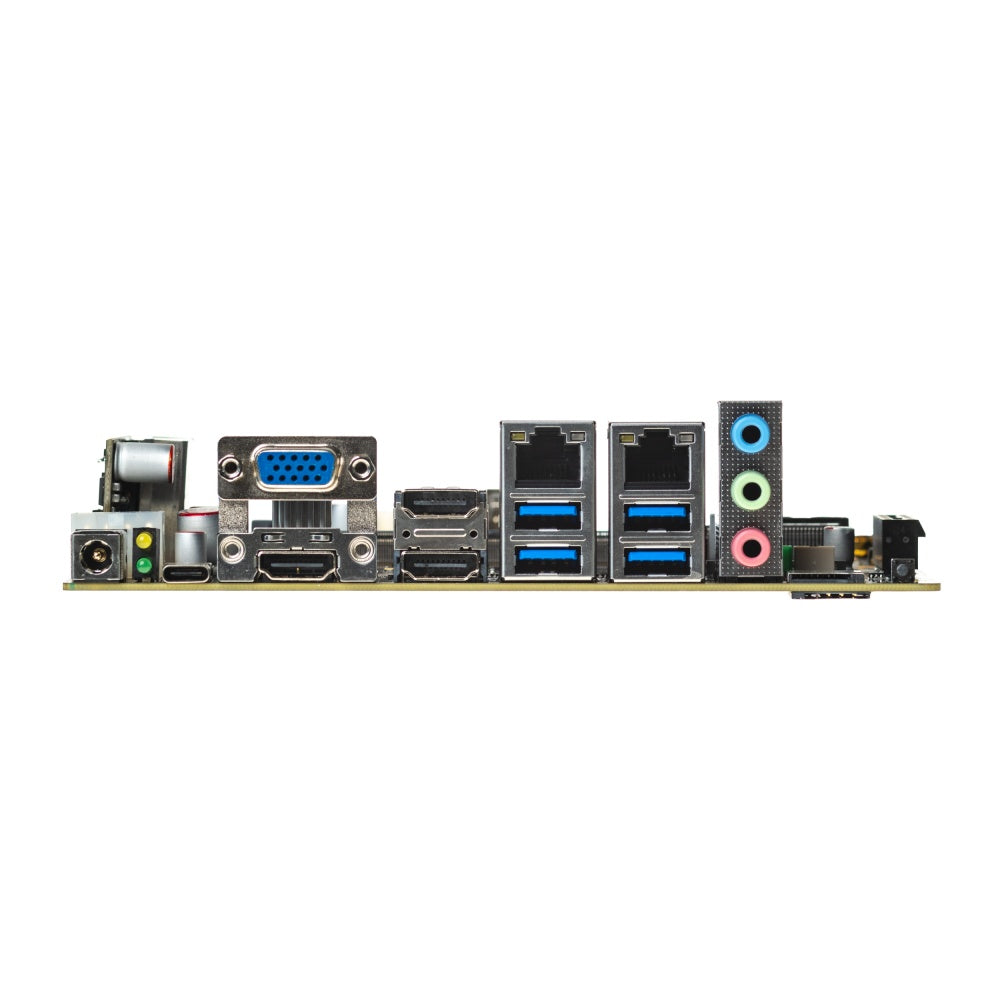

• Multi-channel Input And Output: With HDMI 2.1/MIPI-DSI/DP1.4/VGA multi-channel video output and HDMI RX2.0/MIPI-CSI video input interfaces, it supports multi-channel 8K video output and 4K video input — up to four-screen output with different displays can be achieved. The integrated 48MP ISP with HDR&3DNR supports dual MIPI-CSI camera input.
• Strong Network Communication Capability: With on-board dual GbE RJ45, 2.4GHz/5GHz dual-band WiFi 6 (802.11ax), Bluetooth 5.0, and 5G/4G LTE expansion supported, it enables network communication to have a higher speed.
• PCIe3.0 With High-speed Transmission: The standard on-board PCIe3.0 (4 Lane) interface, with a per-lane data rate of 8Gbps, its 4-lane data rate can reach up to 32Gbps. Featuring blazing-fast and stable transmission, it can be used to expand with standard PCIe 3.0 devices.
• Various Power Supply Ways: A variety of power supply ways are provided: 1) Computer power supply 12V input (standard ATX power interface - 8Pin); 2) DC 12V~24V wide voltage input; 3) POE 48V power input (up to 60W). Various ways meet different application scenarios, flexible and convenient.

Application

• The motherboard can be used in ARM PC, edge computing, cloud server, smart NVR, smart video wall, AR/VR, smart car and other fields.
