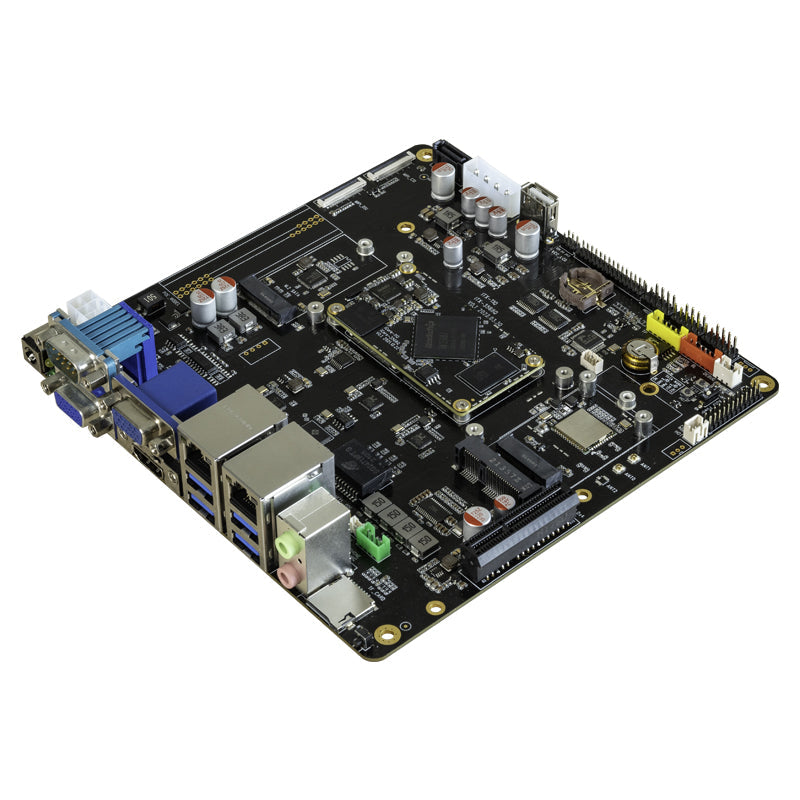

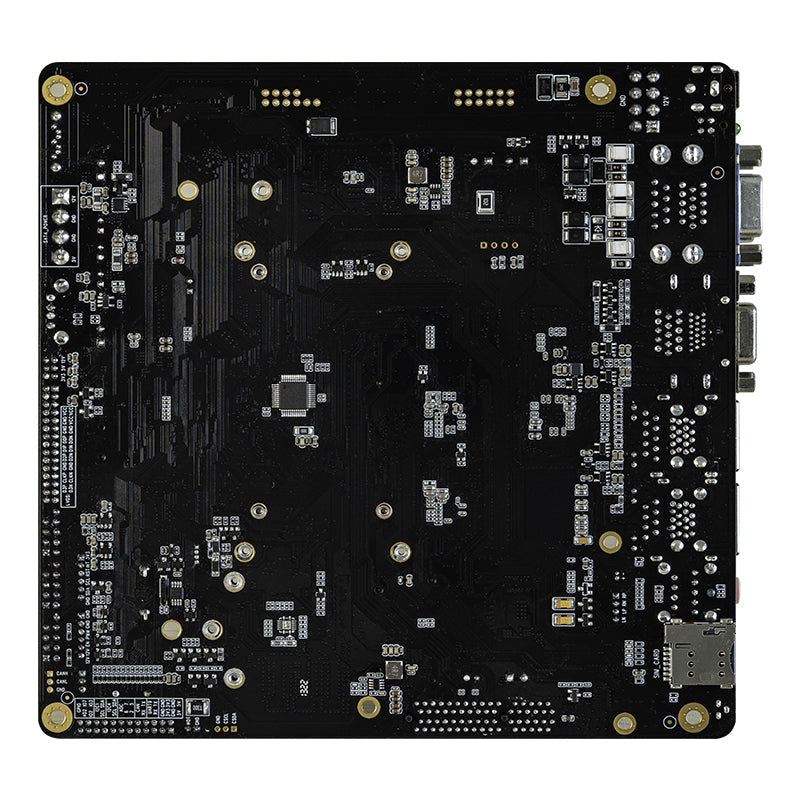

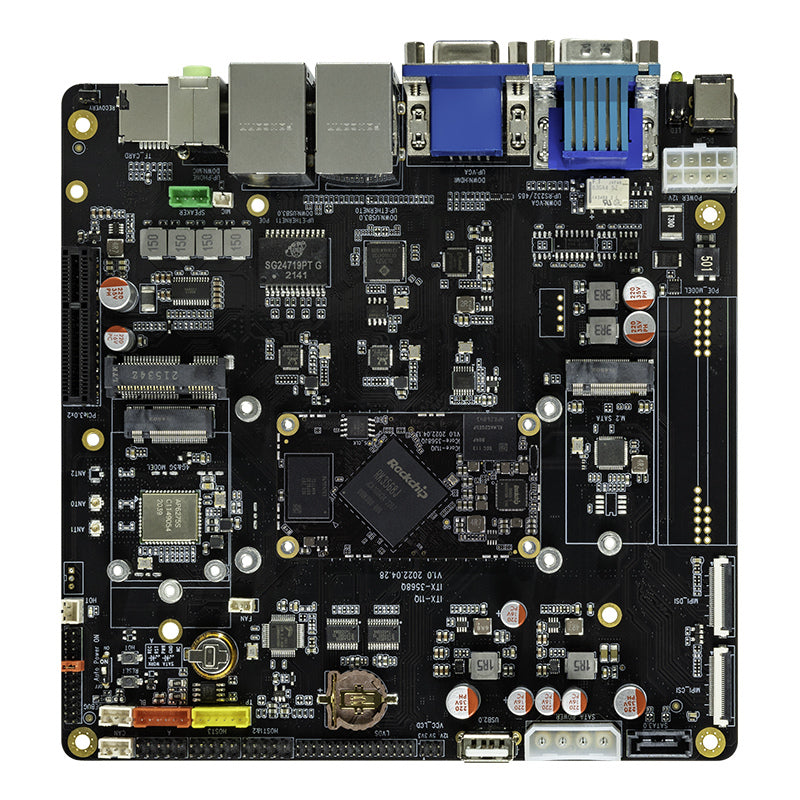

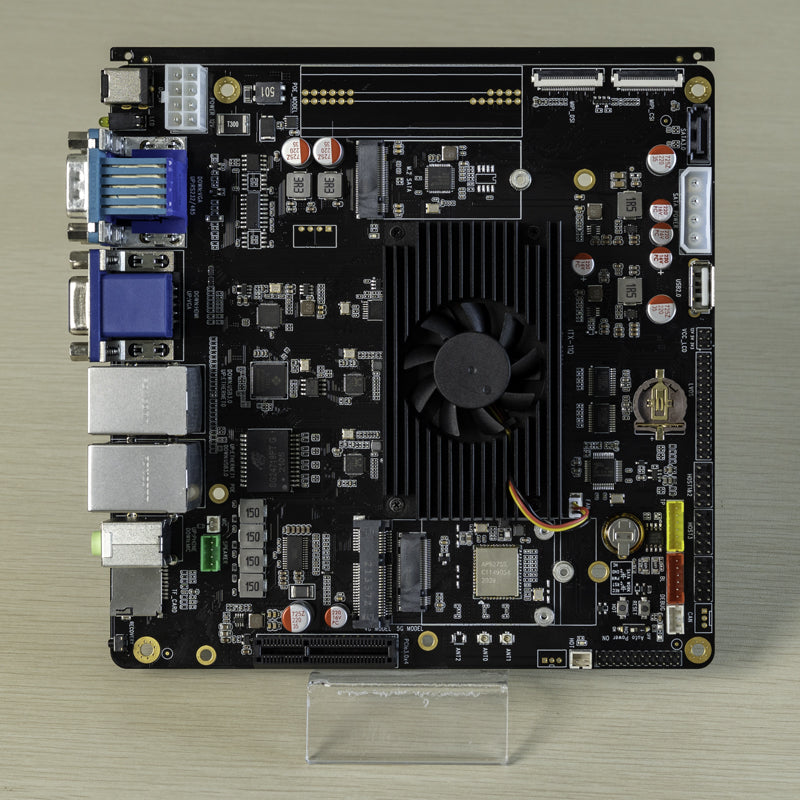

ITX-3568JQ Quad-core ITX ARM Motherboard

This ITX motherboard is equipped with Rockchip RK3568 series quad-core 64-bit industrial-grade processor and 8GB memory. It supports high-speed wireless networks such as WiFi 6 and 5G/4G. The BTB interface provides stronger transmission performance. The motherboard has industrial-grade stability and can operate reliably for a long time in a temperature range of -40°C to 85°C. In addition, industrial-grade and automotive-grade customization are also available.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• Industrial-grade Processor RK3568 Series: The RK3568 series uses a quad-core 64-bit Cortex-A55 processor with a 22nm lithography process and a main frequency of up to 2.0 GHz. It has a built-in 1 TOPS NPU, supports mainstream deep learning frameworks, and provides efficient and stable performance for back-end device data processing. The motherboard provides a wealth of storage configuration options.
• Integrated GPU, VPU, and NPU: It integrates dual-core GPU, high-performance VPU and efficient NPU. The GPU is compatible with Open GL ES 3.2/2.0/1.1 and Vulkan 1.1. The VPU provides synchronous encoding and decoding capabilities, supports single-channel 4K 60fps or eight-channel 1080P 30fps multi-format decoding, and video encoding up to 1080P 60fps. The built-in 1 TOPS NPU supports FP16/BFP16, significantly improving AI application development capabilities.
• Support 3 Displays And Eight-camera Input: The device is equipped with rich video interfaces, including MIPI-DSI, LVDS, eDP, HDMI and MIPI-CSI, and supports triple-screen display output. This feature ensures clear visual content on multiple screens such as the center console, co-pilot seat and headrest, enabling diverse multimedia playback. The built-in 8M ISP provides security-grade image signal processing. The product can support up to eight 1080P camera inputs, making it ideal for multi-camera applications.

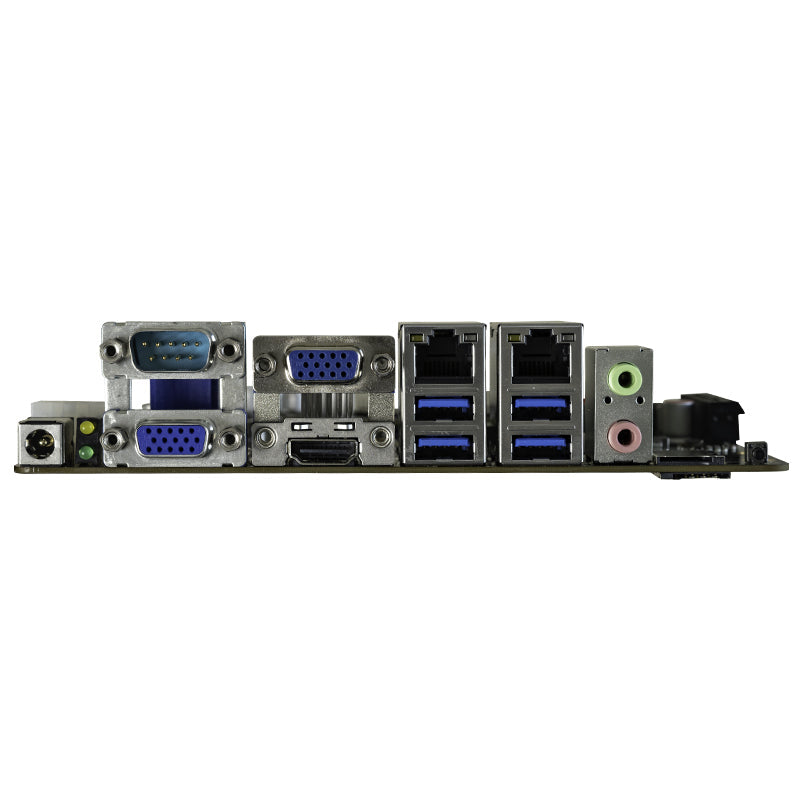

• Strong Network Communication Capability: It supports dual Gigabit Ethernet (RJ45), POE (output power 60W), 2.4GHz/5GHz dual-band WiFi 6, 802.11a/b/g/n/ac/ax protocols, Bluetooth 5.0, and can expand 5G/4G LTE wireless communication.
