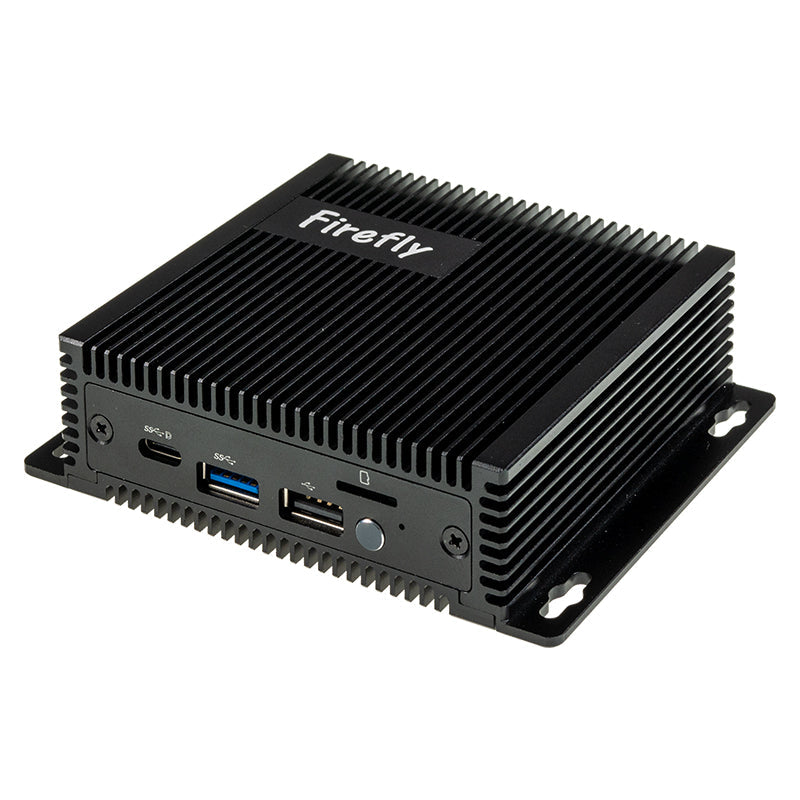

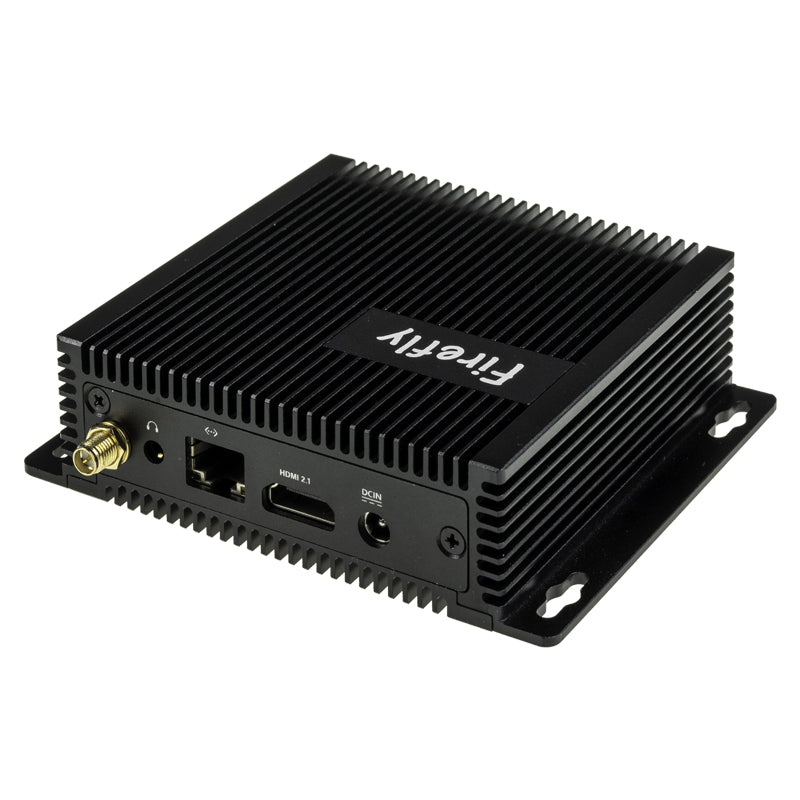

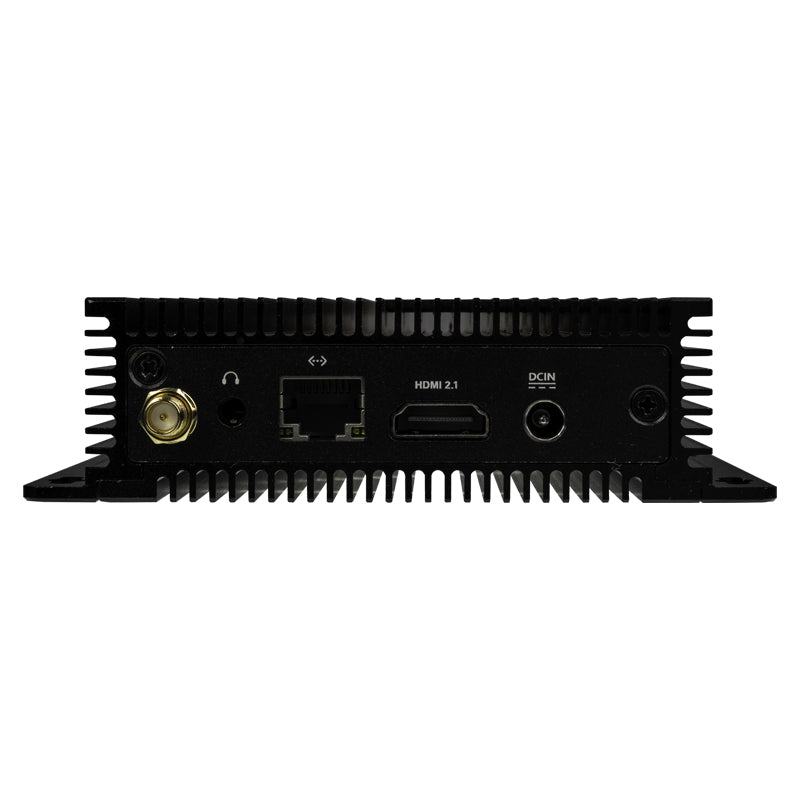

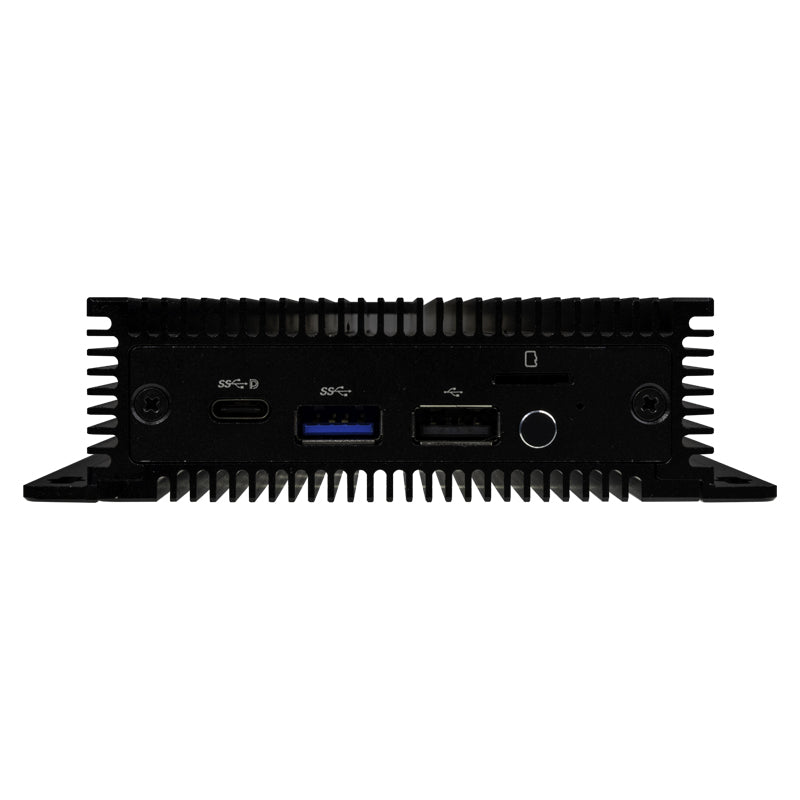

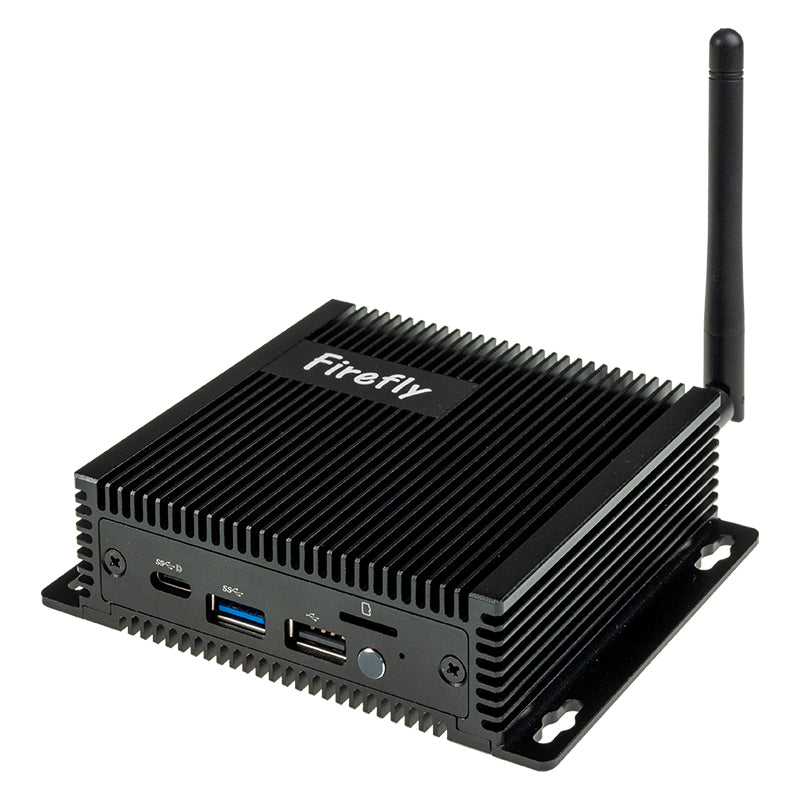

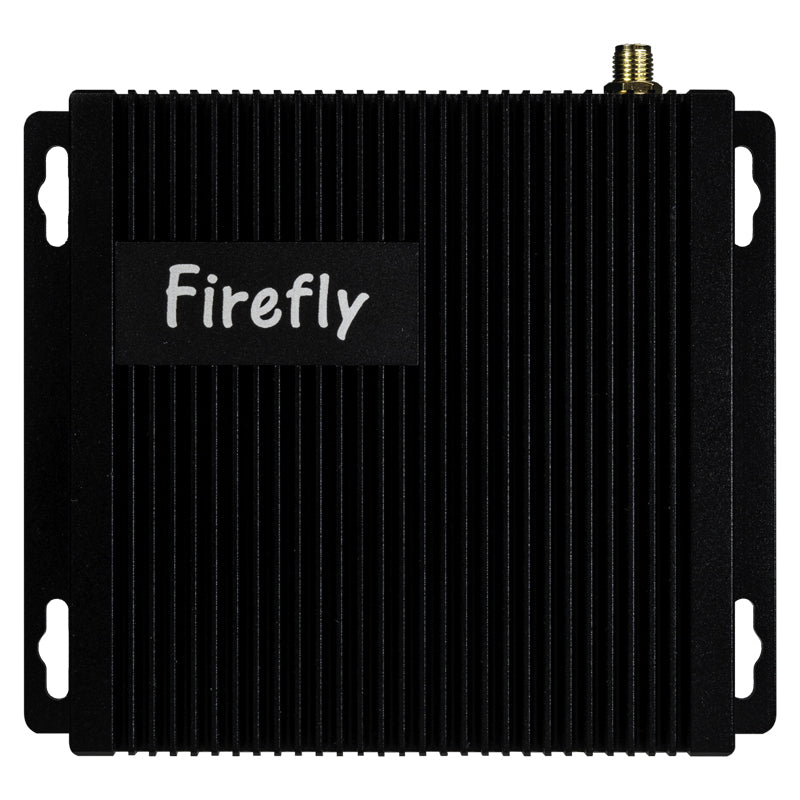

EC-R3588SPC FD Industrial Fanless ARM PC

The EC-R3588SPC FD is an 8K AI industrial host powered by Rockchip's RK3588S octa-core processor (up to 2.4GHz), delivering 6TOPS NPU performance and supporting up to 32GB RAM. It features 8K video encoding/decoding, Gigabit Ethernet, dual-band WiFi, and a rugged fanless metal design—ideal for edge computing, AI, smart home, retail, and industrial automation.

• Product Wiki: Click Here
• Product Datasheet: Click Here

Feature

• RK3588S - A New Generation Of High-end Processor: The RK3588S is Rockchip's new generation flagship AIoT chip, utilizing 8nm photolithography technology. It is equipped with an eight-core 64-bit CPU with a main frequency of up to 2.4GHz. It integrates an ARM Mali-G610 MP4 quad-core GPU and a built-in AI accelerator NPU, providing 6 TOPS computing power and supporting mainstream deep learning frameworks.
• 8K Video Encoding And Decoding: The computer supports 8K@60fps VP9 video decoding and 8K@30fps H.264 video encoding, allowing simultaneous encoding and decoding. This capability enables up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding. The powerful video encoding and decoding capabilities bring stunning 8K high-definition display effects and delicate picture quality.
• Multi-channel Video Output: It supports 8K HDMI 2.1 and DP1.4 video output, and can realize dual-screen output of different displays, which is suitable for various dual-screen interactive display scenarios.
• Excellent Heat Dissipation: The device adopts industrial-grade metal casing and fanless design, which not only ensures low power consumption and efficient heat dissipation but also is absolutely silent and supports 7x24h continuous and stable operation.

Hardware Overview
