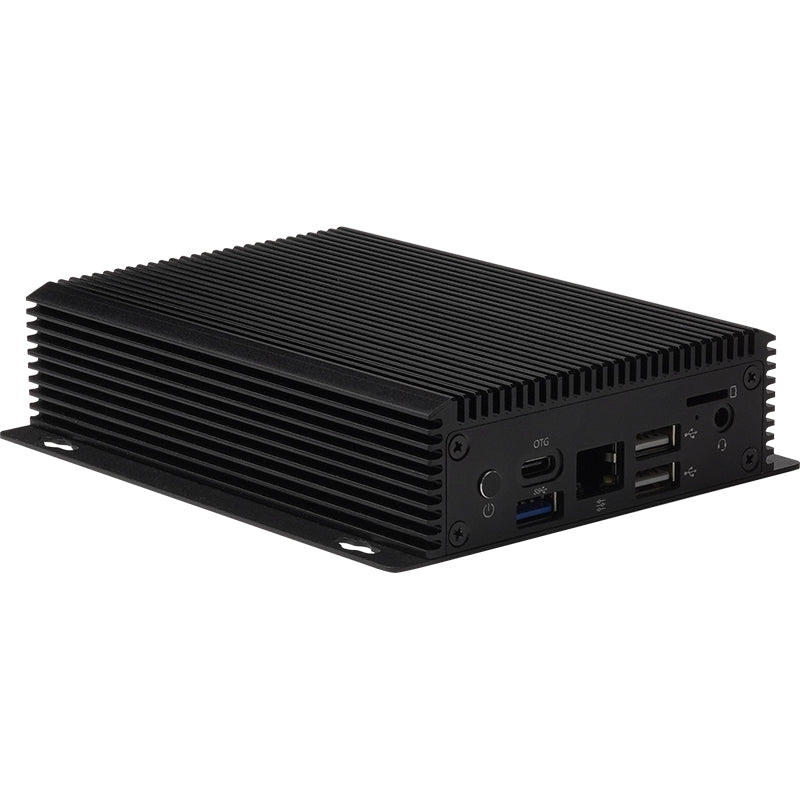

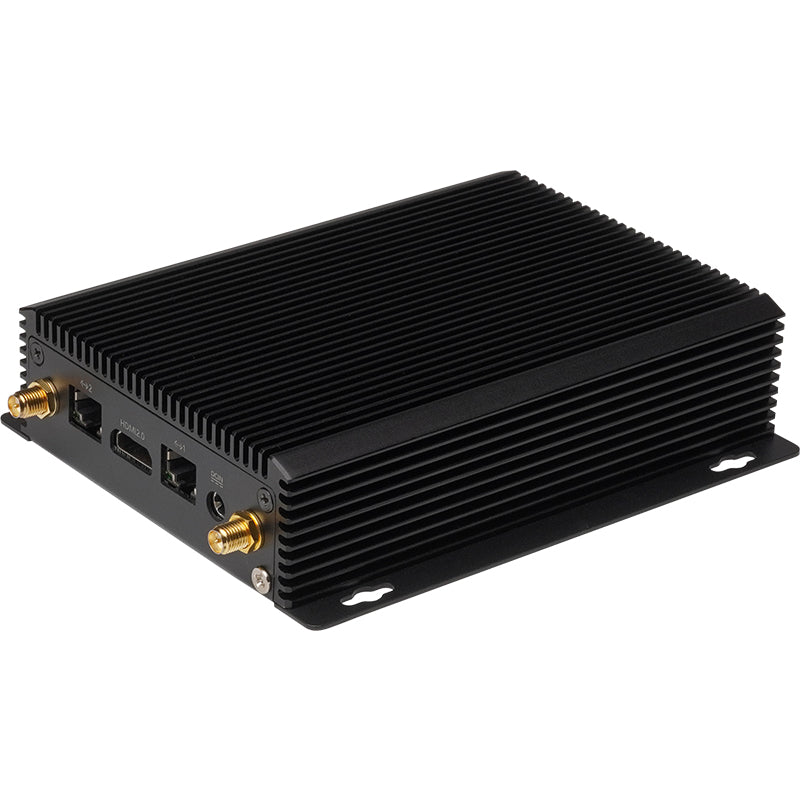

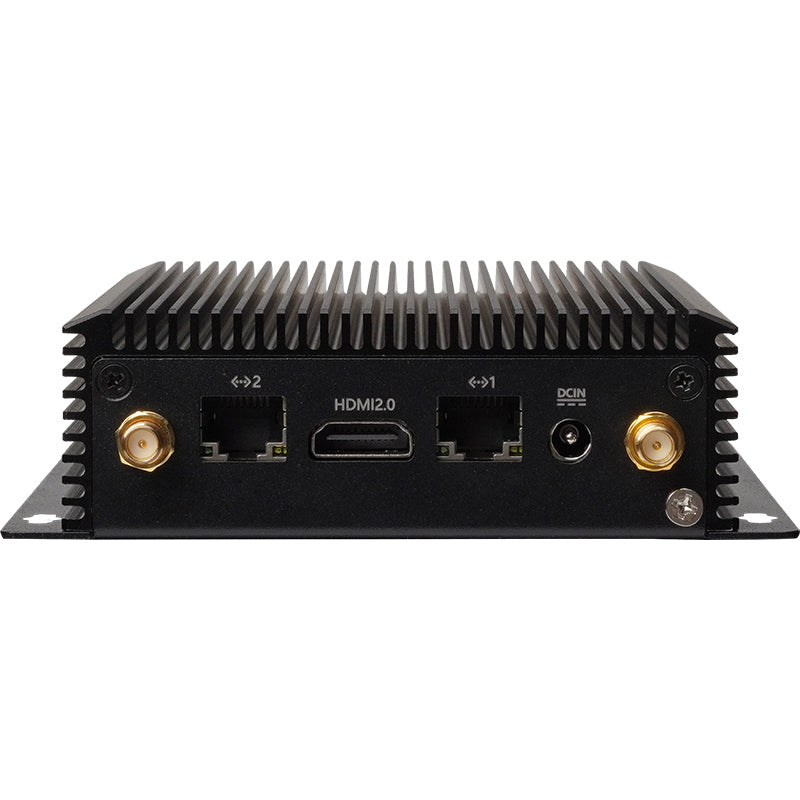

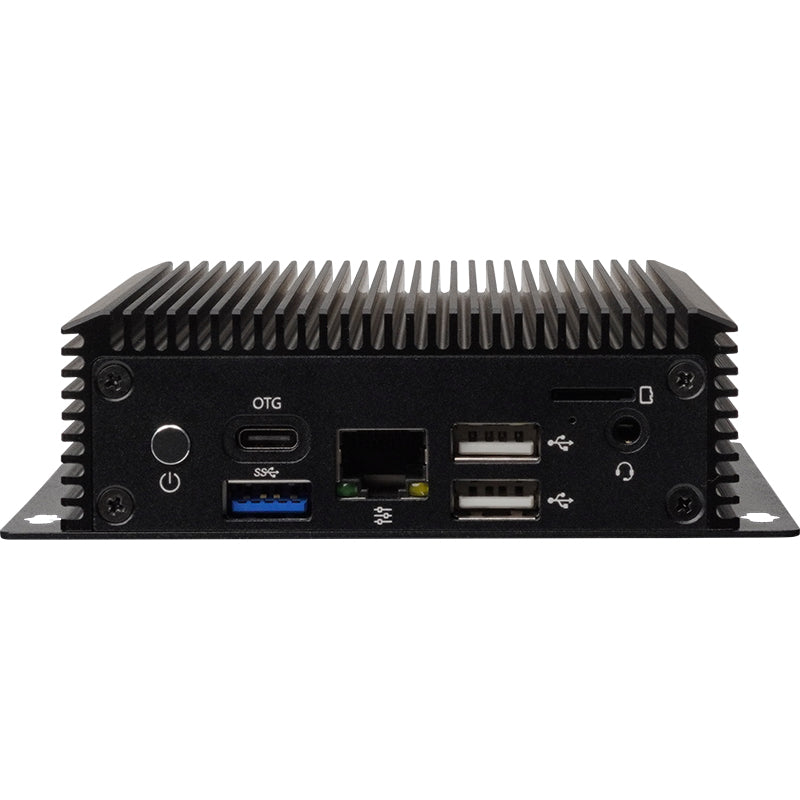

EC-R3568PC AI Fanless Industrial ARM PC

EC-R3568PC is equipped with a Rockchip RK3568 quad-core processor, a Mali-G52 dual-core GPU, and a high-performance 1TOPs NPU, and supports up to 8 GB RAM. It features built-in dual Gigabit network cards, dual-band Wi-Fi 6, Bluetooth 5.0, and a rich array of interfaces, making it suitable for various scenarios, including smart NVR, cloud terminals, IoT gateways, and industrial control.

• Product Datasheet: Click Here

Feature

• RK3568 Quad-core 64-bit Processor: RK3568 quad-core 64-bit Cortex-A55 processor, with a main frequency of up to 2.0GHz, greatly improved efficiency; using 22nm lithography process, low power consumption, and high performance.
• Integrated Co-processors: It integrates a dual-core GPU, a high-performance VPU, and an efficient NPU. The GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan 1.1. The VPU can achieve 4K 60fps H.264/VP9 video decoding and 1080P 100fps H.264 video encoding. The NPU supports one-click switching of mainstream frameworks such as Caffe/TensorFlow.
• Dual Gigabit Ethernet: Equipped with dual Gigabit network ports, it can access and transmit internal and external network data through the dual network ports, improve network transmission efficiency, and meet the needs of multi-network port products such as NVR and industrial gateways.
• Onboard M.2 and SATA3.0: Onboard M.2 PCIe3.0 and SATA3.0 interfaces can be connected to M.2 NVMe SSD and 2.5-inch SSD/HDD respectively, with the advantages of high-speed reading and writing and large capacity.
• Excellent Heat Dissipation: It adopts industrial-grade metal shell, fanless design, efficient heat dissipation, low power consumption and zero noise; it supports 7x24h continuous and stable operation.

Hardware Overview
