EC-A3576JD4 Industrial ARM Fanless PC

The EC-A3576JD4 features a Rockchip RK3576 octa-core 64-bit AIoT processor with ARM Mali G52 MC3 GPU and a 6 TOPS NPU, enabling private Transformer-based large model deployment. It supports 4K@120fps decoding and 4K@60fps encoding, along with industrial-grade stability and watchdog support, making it ideal for edge AI and high-performance embedded applications.

• Product Datasheet: Click Here

Feature

• Octa-core 64-bit AIOT Processor RK3576: The RK3576 is an octa-core 64-bit high-performance AIoT processor featuring a big.LITTLE architecture (4×A72 + 4×A53) with advanced lithography and a 2.2GHz clock speed for powerful computing. Its Mali-G52 MC3 GPU delivers 145G FLOPS, enabling efficient heterogeneous computing for graphics-intensive applications.
• Custom Private Deployment of AI Models: Supports private deployment of rich parameter models based on the Transformer framework, including Gemma-2B, ChatGLM3-6B, Qwen1.5-1.8B, Phi-3-3.8B and other rich language models.
• 4K@120 FPS High Frame Rate Video Decoding: The computer supports 8K@30fps and 4K@120fps decoding (VP9, AVS2, AV1), as well as 4K@60fps H.264/AVC decoding/encoding, and high-speed display interfaces, including HDMI 2.1 (4K@120fps) and eDP 1.3 (4K@60fps).
• Powerful Image Processing Capabilities: The ARM fanless PC integrates a 16MP AI-ISP with low-light noise reduction, RGB-IR sensor support, and 120dB HDR, delivering enhanced image quality. It also features multi-channel MIPI-CSI input for advanced vision applications.

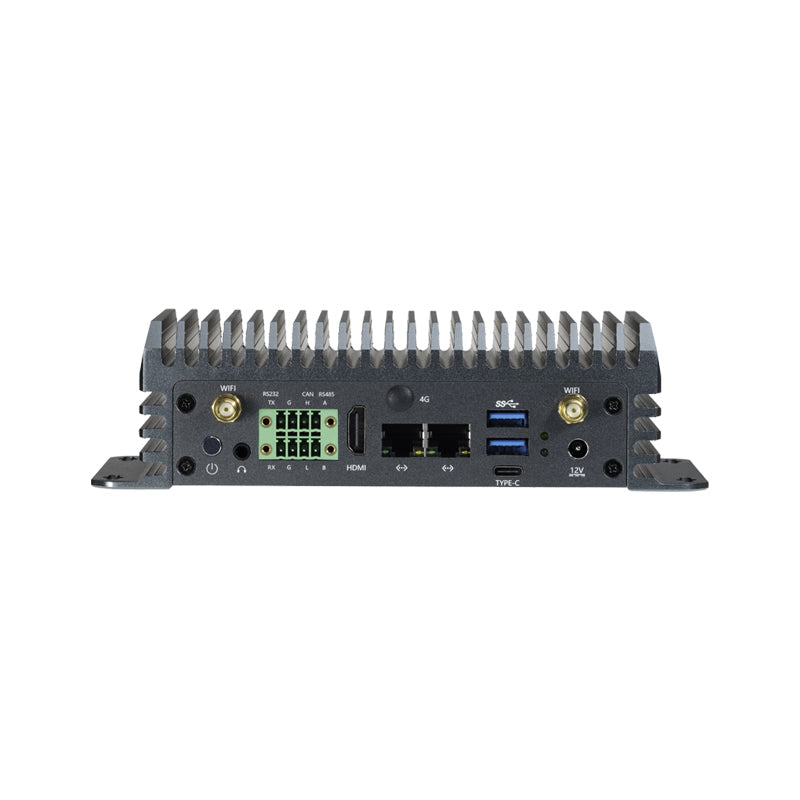

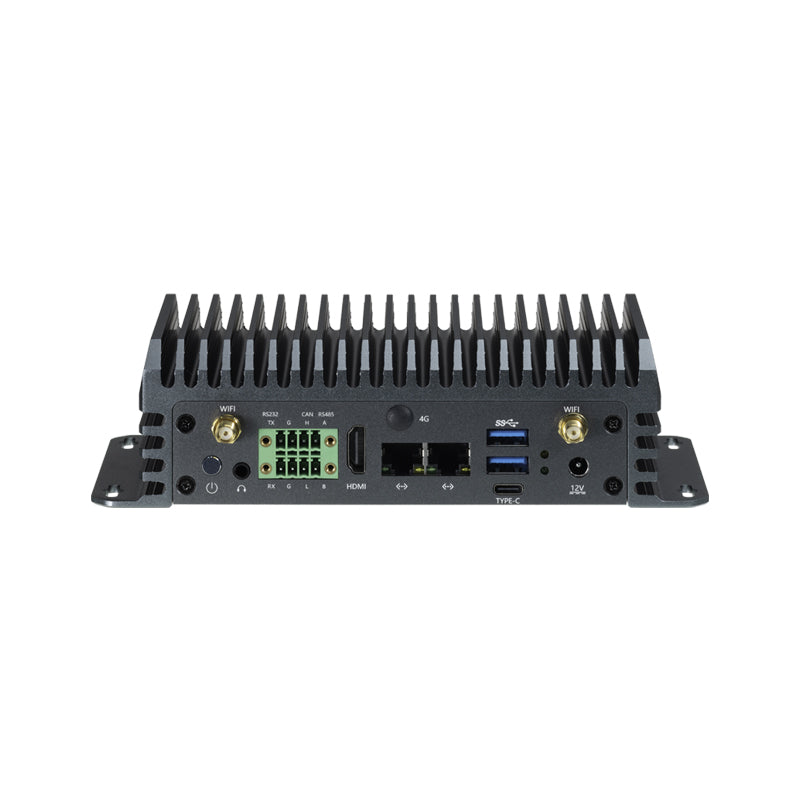

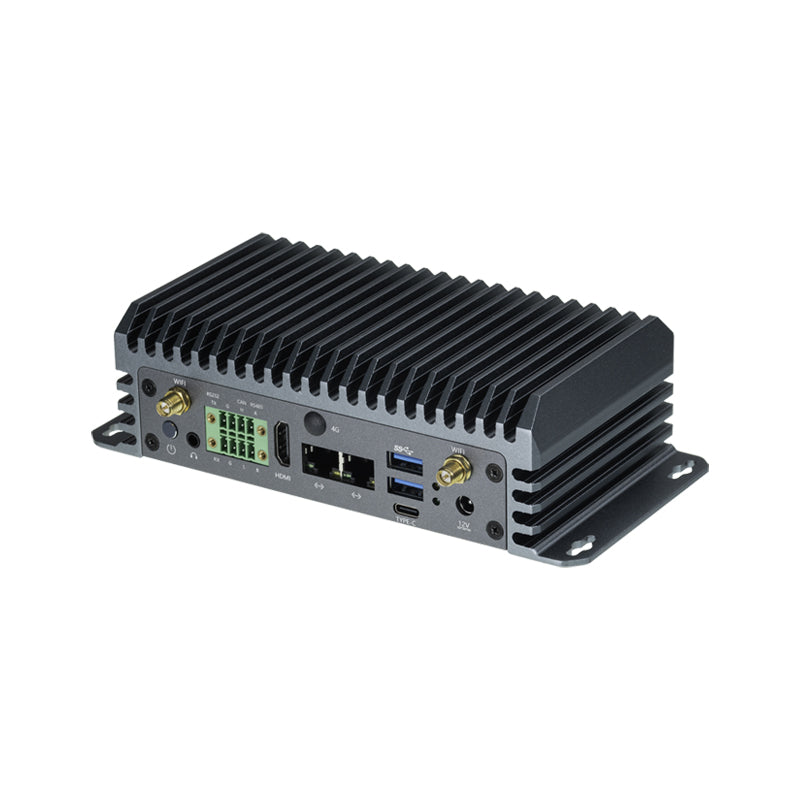

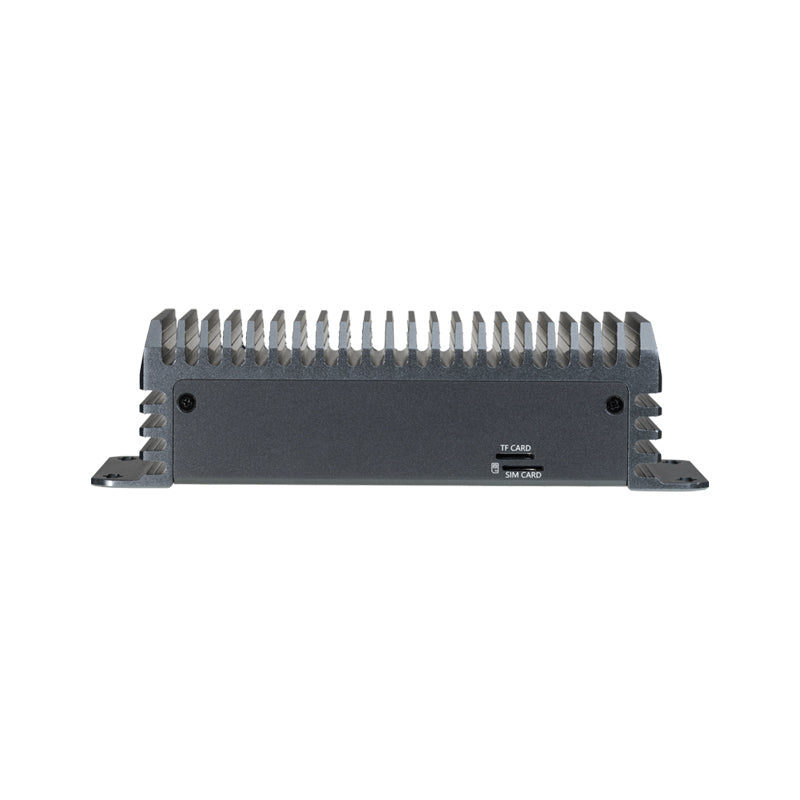

Hardware Overview
