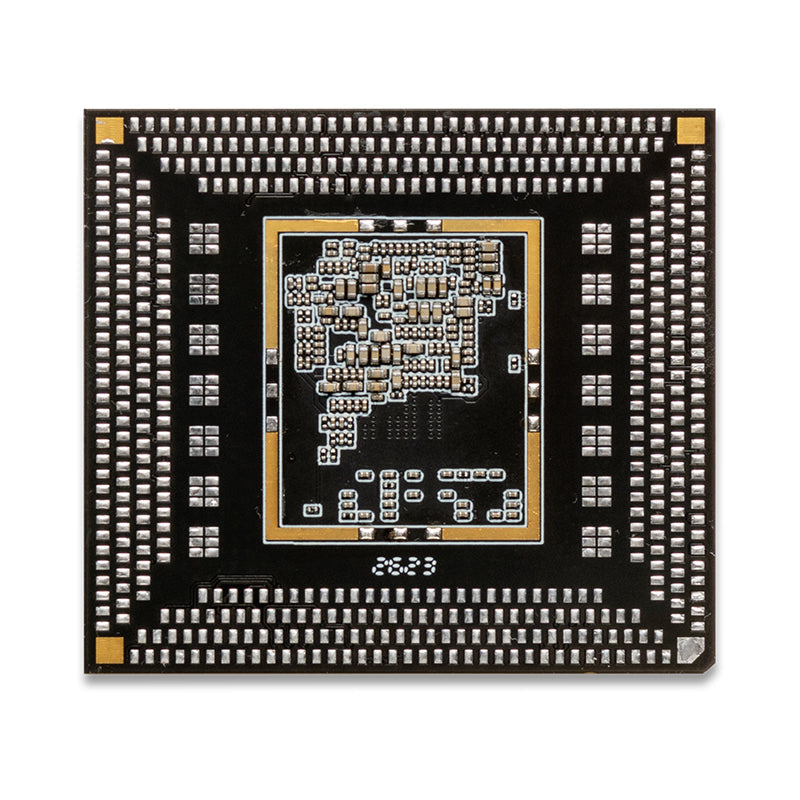

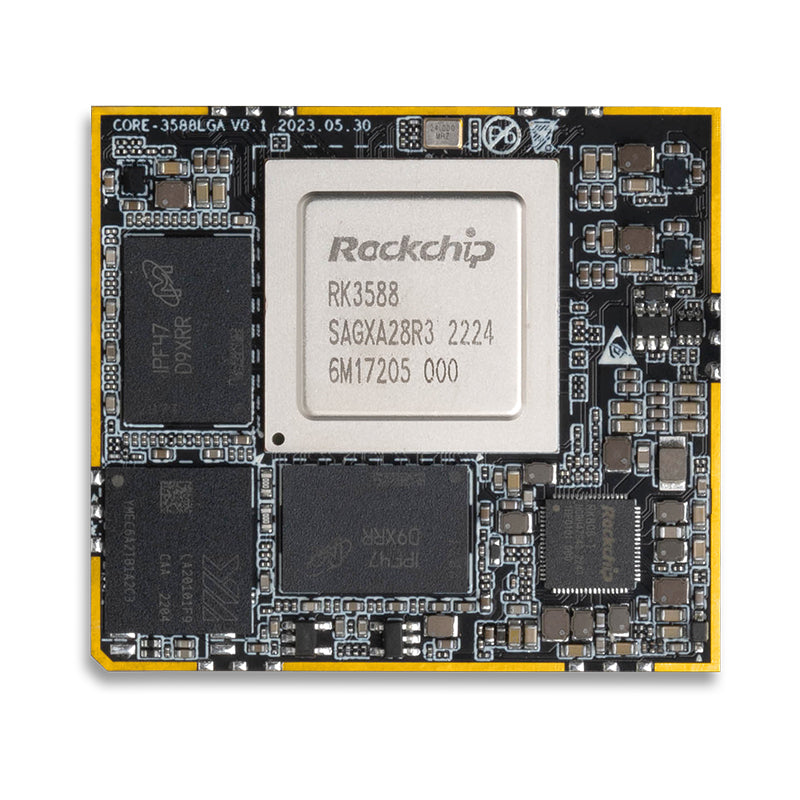

Core-3588L AI System on Module Rockchip RK3588

The system on module is equipped with Rockchip's new generation flagship octa-core 64-bit processor RK3588, with up to 32GB memory, 6 TOPS NPU and 8K video encoding and decoding capabilities. LGA packaging improves transmission capacity. Core-3588L provides a rich selection of interfaces, supporting multiple hard drives, Gigabit Ethernet, WiFi 6, 5G/4G expansion, and video input and output. Compatible with multiple operating systems.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• A New-gen AIoT SoC RK3588 Series: RK3588 is Rockchip's new generation flagship AIoT SoC, built with 8nm lithography. It is equipped with an octa-core 64-bit CPU with a main frequency of up to 2.4 GHz. It integrates an ARM Mali-G610 MP4 quad-core GPU, a 48-megapixel image signal processor (ISP) supporting HDR and 3DNR, and a built-in AI accelerator NPU, which can provide 6 Top computing power. The RK3588 series also supports mainstream deep learning frameworks. The powerful performance of RK3588 provides more optimized performance in various AI application scenarios.
• 6 TOPS Powerful Computing Power: It is equipped with a powerful NPU with 6TOPS computing power, supports INT4/INT8/INT16 mixed operations, and supports TensorFlow/MXNet/PyTorch/Caffe framework switching.
• 8K HD Video Decoding: The core board supports 8K@60fps video decoding and 8K@30fps video encoding, and supports simultaneous encoding and decoding, which can achieve up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding. The powerful video encoding and decoding capabilities bring amazing 8K high-definition display effects and delicate picture quality.
• New-generation 48-megapixel ISP:  RK3588 introduces a new generation of 48-megapixel ISP 3.0, which supports lens shading correction, 2D/3D noise reduction, sharpening and defogging, fisheye correction, gamma correction, wide dynamic contrast enhancement and other functions, significantly improving image quality.
• Support 7-channel Camera Connections: The system on module is equipped with HDMI 2.1/eDP1.3, MIPI-DSI, DP1.4 and BT.1120, supports multiple video output options and multi-channel 8K video output, and supports seven-screen output, which can be matched with different monitors to meet the needs of multi-screen display scenarios. In addition, it also supports multi-channel video input interface and up to 7-channel camera interface.
