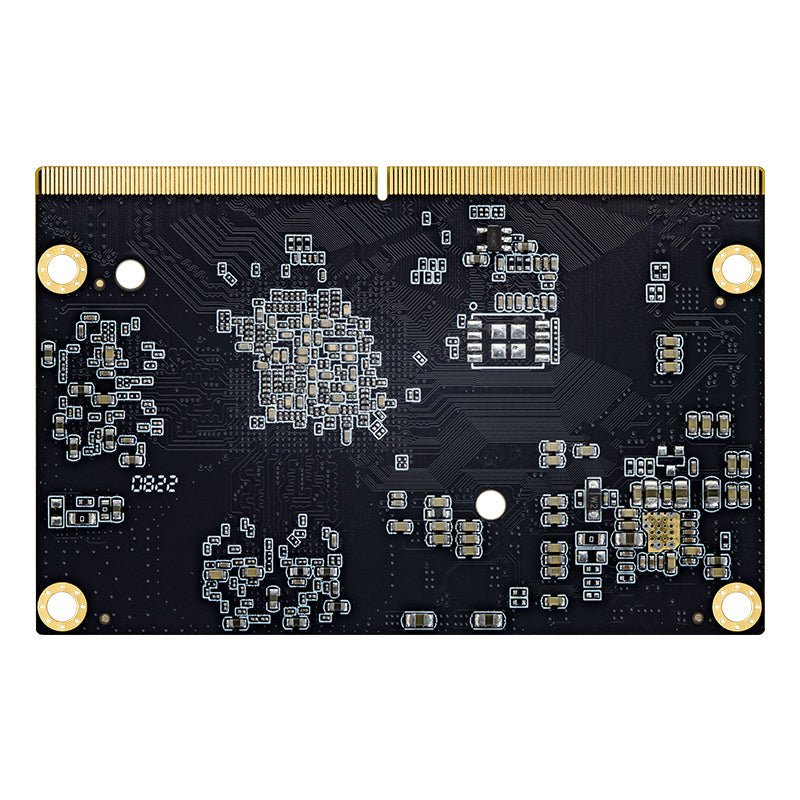

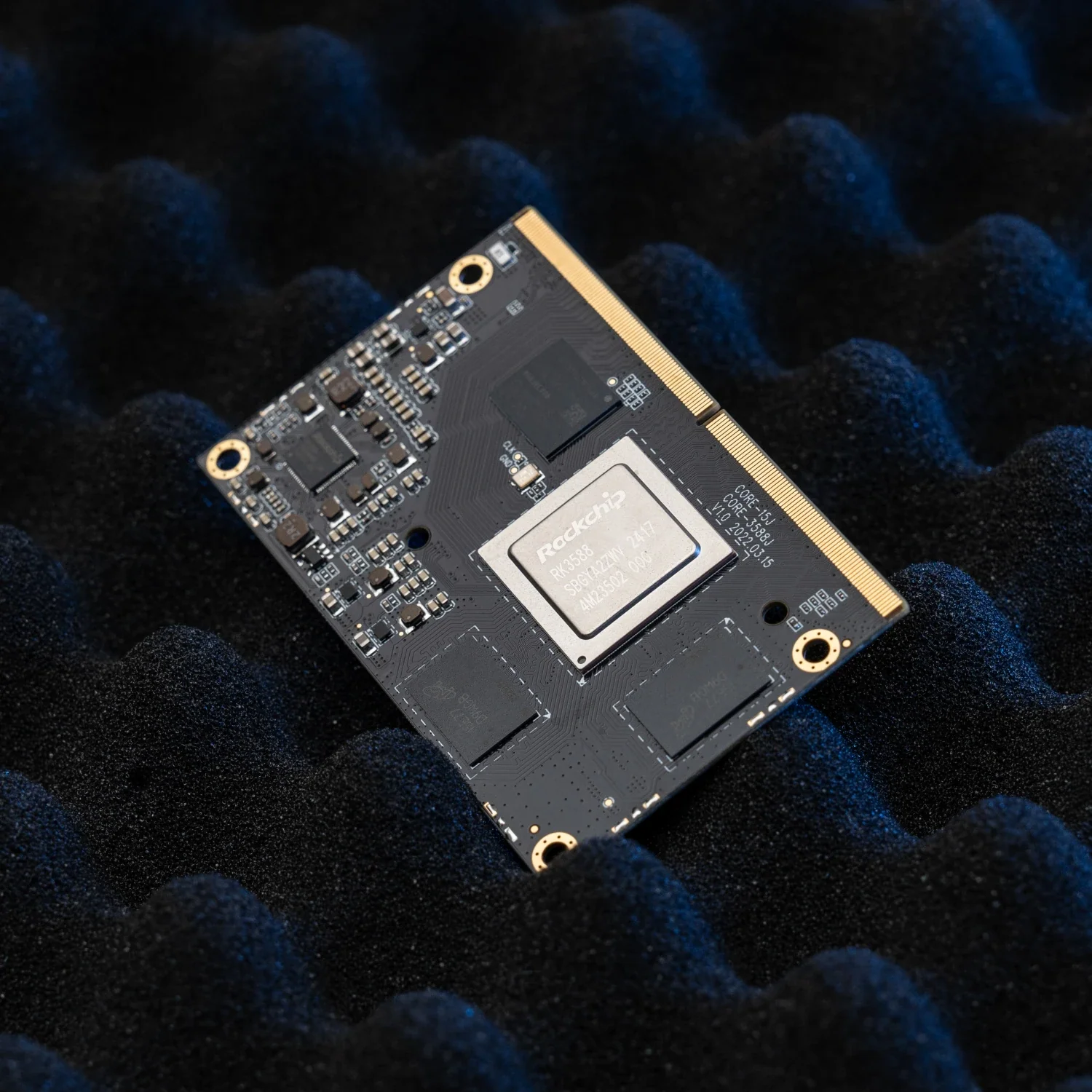

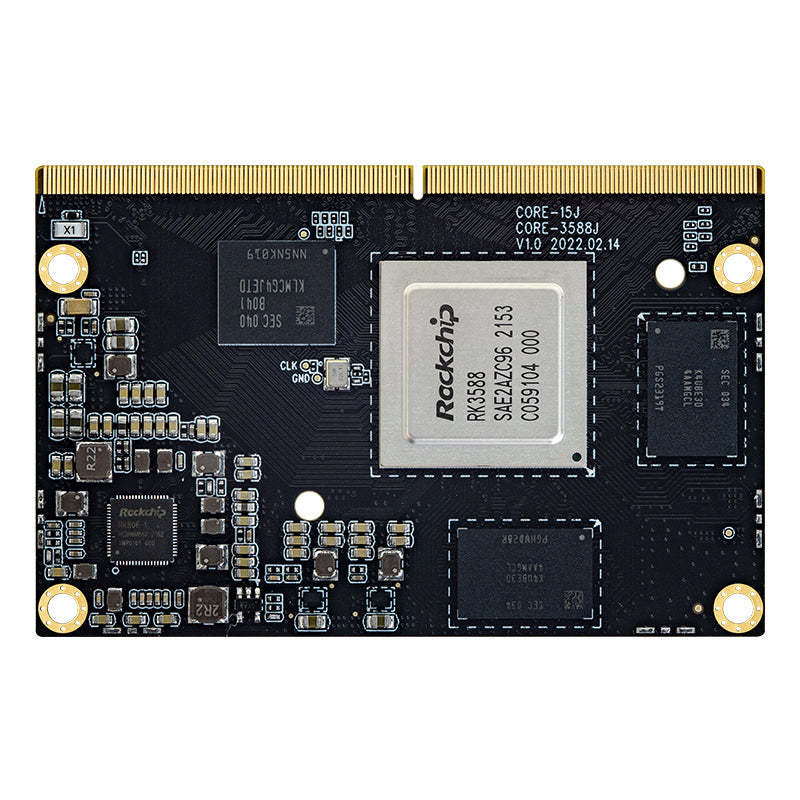

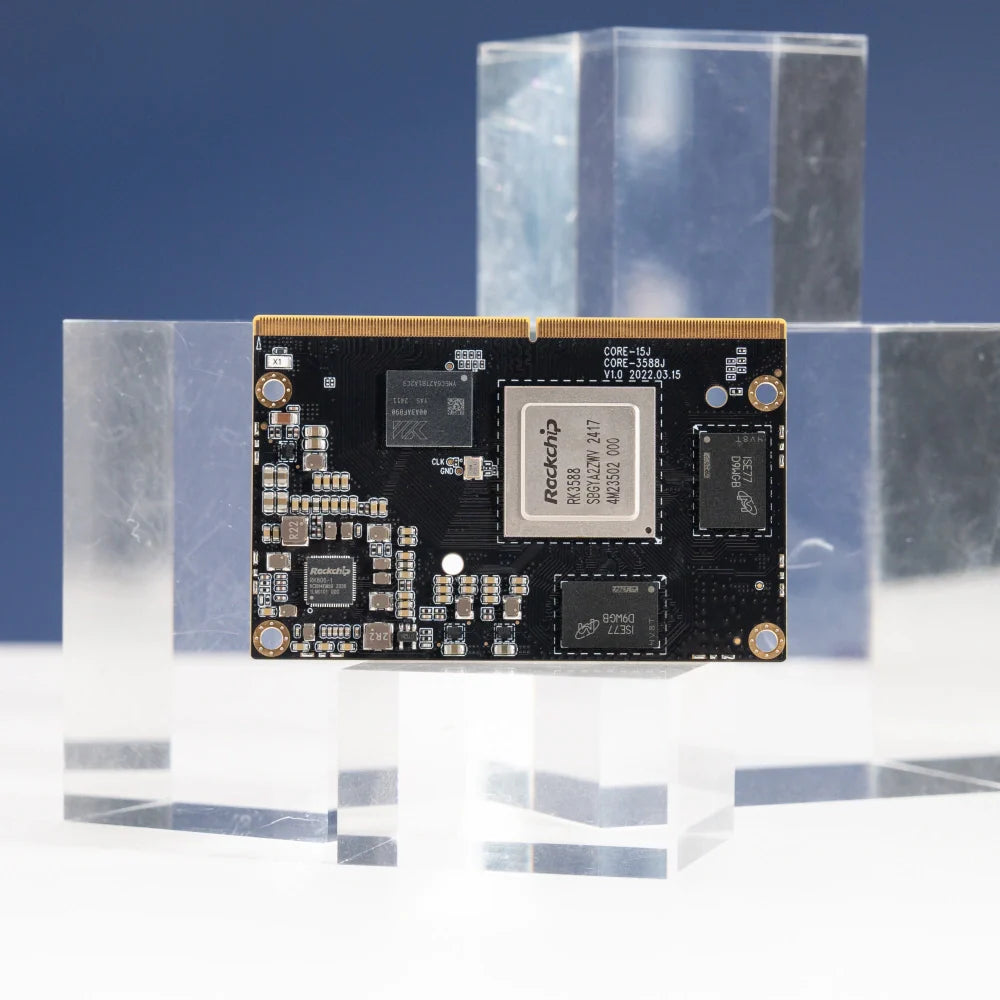

Core-3588J 8K AI System on Module RK3588 SOC

The system on module is equipped with Rockchip RK3588 new generation 8-core 64-bit processor and can be configured with up to 32GB RAM. It has 8K video encoding and decoding capabilities, provides rich interfaces, supports multiple hard drives, Gigabit Ethernet, WiFi6, 5G/4G expansion, and rich video input and output interfaces. In addition, it also supports multiple operating systems. The SoM can be widely used in ARM PC, edge computing, cloud servers, smart NVR and other fields.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• 8K Video Encoding And Decoding: Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also supports encoding and decoding simultaneously — achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding.
• New-gen AIoT SoC RK3588: RK3588 is Rockchip's new generation flagship AIoT chip, built with 8nm photolithography technology. It is equipped with an 8-core 64-bit CPU with a main frequency of up to 2.4GHz. It integrates ARM Mali-G610 MP4 quad-core GPU, built-in AI acceleration NPU, provides 6Tops computing power, and supports mainstream deep learning frameworks. The powerful RK3588 can show more optimized performance in various AI application scenarios.
• Multi-channel Input And Output: Equipped with HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DVP video input interface, it supports multi-channel 8K video output and 4K video input, and can achieve up to seven screens output and support different displays. It integrates 48MP ISP, supports HDR&3DNR, and supports dual MIPI-CSI camera input.
• Multiple Hard disks, Massive Capacity: It supports expansion of multiple PCIe3.0/SATA3.0 SSD/HDD mass storage devices at the same time, making it a reality that the device can be easily expanded with TB storage capacity.

Application

• Edge Computing
• ARM PC
• AR/VR
• Smart Car
• Cloud Server
• Smart NVR
