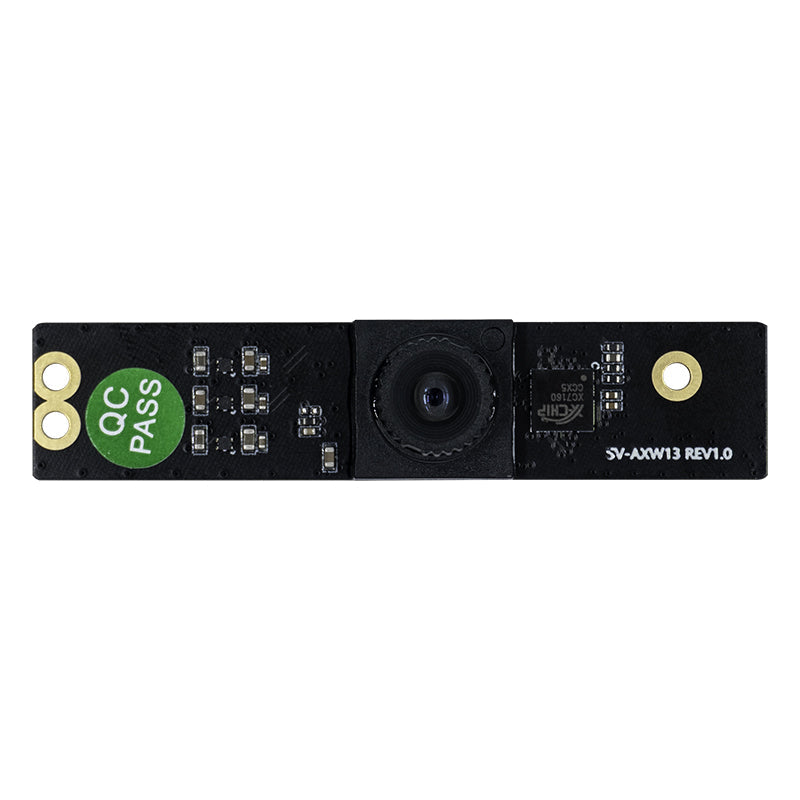

CAM-8MS1M 8Mega Pixel HD Camera Module
CAM-8MS1M 8Mega Pixel HD Camera Module
Regular price
$35.40 USD
Regular price
Sale price
$35.40 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
CAM-8MS1M 1/2.7 inch industrial grade HD WDR sensor 100dB WDR, suitable for various complex light environments. MIPI standard interface, supports 7x24h operation.
- Product Wiki: Click Here
Product Parameters
| Sensor | SC8238 |
| CMOS Sensor | 1/2.7 Sensor/RGB |
| ISP | Built in XC7160 |
| Max Resolution | 3840(H) x 2160(V) (16:9 mode) |
| Sensor Pixel Size | 1.5um x 1.5um |
| Low Lux | ≤0.3Lux/F2.4 |
| Image Transmission Rate | 4K/25fps |
| SNR | 36dB |
| WDR | >100DB |
| Distortionless Lens | M8 x 0.25 Lens/650NM Filter |
| FOV | H: 84°V: 50° |
| Aperture | F2.0 |
| Focal Length | 4.3mm |
| Distortion | TV Distortion<1% |
| Lens CRA | <19.4° |
| Lens Temperature Range | -20° /+65° |
| Video Output Format | YUV/MJPG |
| IR | NC |
| Power Supply | 5V, Ripple not higher than 80mv |

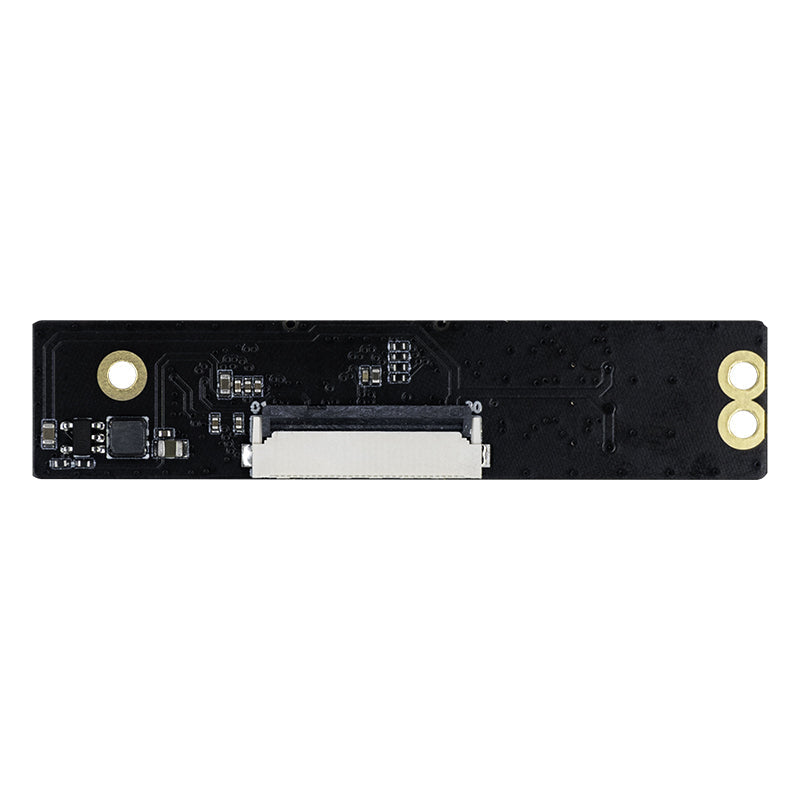

| Connection Way | 0.5mm FPC (CAM-8MS1M is 30pins, Board needs to be based on the hardware interface) |
| Power Consumption | 5V/ 270MA+10% |
| Operating Temperature | -10° C ~ +55° C (Humidity : 10%RH ~ 75%RH) |
| Storage Temperature | -20° C~ +65° C (Humidity : 10%RH ~75%RH) |
