C40PL Open Source AI Camera
C40PL Open Source AI Camera
Regular price
$143.40 USD
Regular price
Sale price
$143.40 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

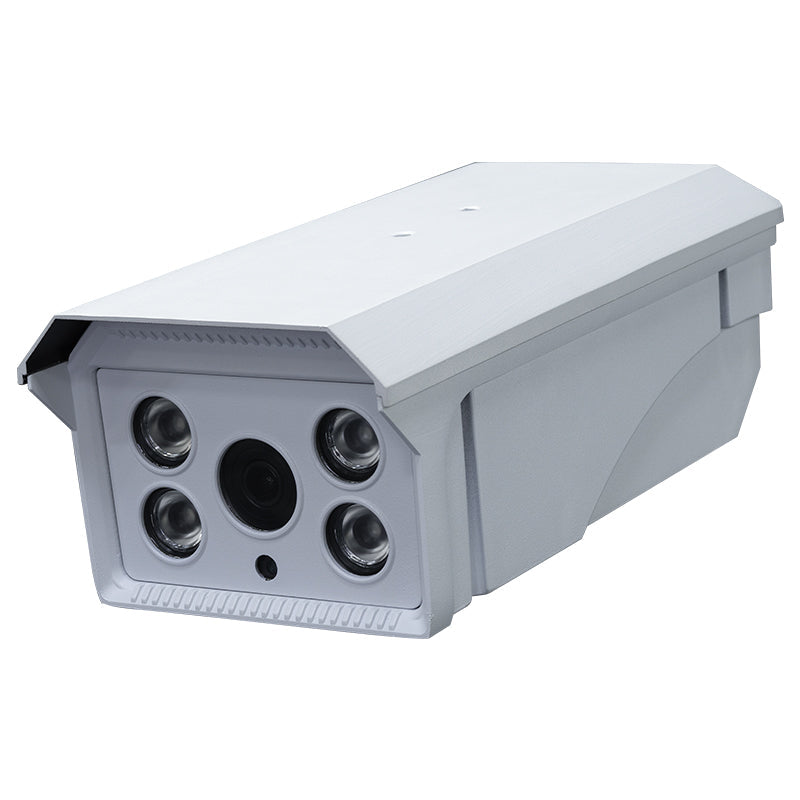

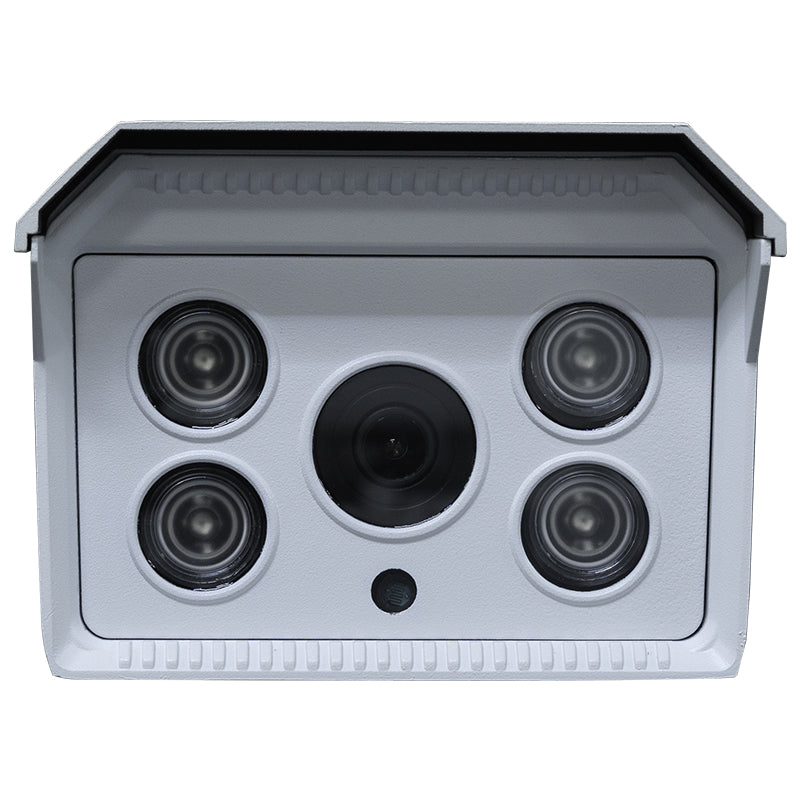

The C40PL is equipped with a quad-core high-performance AI intelligent vision processor with a computing power of up to 2.0Tops. It supports 4K video encoding and decoding, multiple AI frameworks and liveness detection, has high recognition accuracy, and is equipped with a 400W HDR high dynamic infrared enhanced wide-angle camera, which is suitable for scenarios such as face recognition and license plate recognition.
- Product Wiki: Click Here
Feature
- Quad-core AI vision SoC: Low-power AI vision processor RV1126 quad-core 32-bit ARM Cortex-A7 architecture, up to 1.5GHz.
- IP67 Waterproof Design: IP67 waterproof and dustproof designmakesthe camera easier to deal withoutdoorsurveillance and rainy and snowyweather.
- Powerful AI Computing NPU: Built-in neural network processor NPU with computing power up to 2.0 Tops , it supports direct conversion and deployment of Tensorflow PyTorch, Caffe, MxNet, DarkNet, ONNX, etc.
- 4M Pixel, HD And HDR: Owing to a large-aperture high-precision optical 4M pixel lens, with resolution up to 2688*1520, HDR function and dynamic range up to 120db.
Specifications
| Resolution | 1520P(2688×1520, 4M pixel) |
| Focal Length | 5.2mm(Range: 1.18m ~6.38m) |
| Lens Angle | 111° |
| WDR | 120dB |
| Video Encoding | H.264/H.265 4K@30FPS |
| Network Interface | RJ45(GbE) |
| Power | 48V-0.5A(POE) |
| OS | Linux |
| Size | 249×124×90.8 (mm) |
| Operating Temperature | -10℃～60℃ |
| IP Rating | IP67waterproof and dustproof design |
| CPU | RV1126 quad-coreARM Cortex-A732-bit kernel, integrated with NEONand FPU |
| NPU | 2.0Tops, supports INT8/ INT16Strong network model compatibility, easy conversion of frameworks like Tensor Flow/MXNet/PyTorch/Caffe |
| RAM | 2GB DDR4 |
| Storage | 16GB eMMC |
| Intelligent Alarming | Motion detection, intrusion detection, covering detection |
| Mode | Supports Day/Night mode switching, Fill Light mode |
| Protocol | Supports RTSP/RTMP |
| Face Recognition | Supports face detection, face recognition |
| Back-Stage Management | Video preview playback, face recognition management, network settings, video settings, audio settings, image settings, event management, configurationplan, storage management, intelligent analysis |
