AIO-GS1N2 Jetson Orin RK3576 Dual Module Gateway Motherboard

AIO-GS1N2 adopts a dual-core heterogeneous architecture, with two system on modules running in parallel: RK3576 for general computing and Jetson Orin for real-time AI reasoning. By utilizing heterogeneous computing and integrating the advantages of different chips, it provides high-performance and multi-functional processing capabilities for complex scenarios. This design optimizes resource allocation, supports parallel task execution, and significantly improves system efficiency.

• Product Datasheet: Click Here

Feature

• Up to 157 TOPS Computing Power: It supports 6-157 TOPS computing power and has the capabilities of edge computing, real-time decision-making, AI smart gateway, large-scale data forwarding processing, complex network protocols and security computing, and visual development. It is suitable for various AI application scenarios such as edge AI servers, smart gateways, industrial automation, robot control, medical equipment, and in-vehicle multimedia terminals.
• Supports 8K Video Codec: Supports 8K@60fps H.265 encoding/decoding, providing clearer and smoother video transmission over standard networks while reducing storage requirements. Strong compression efficiency makes it ideal for security surveillance, industrial IoT monitoring and other bandwidth-sensitive applications.
• Onboard SATA 3.0 / M.2 PCIe Interfaces: Onboard SATA 3.0 and M.2 PCIe interfaces support storage expansion with 3.5'/2.5' SSDs/HDDs and PCIe NVMe SSDs, delivering terabyte-scale capacity.
• 10 Gigabit Ethernet Ports with PSE Support: This configuration features a 10 Gigabit Ethernet interface with Power Sourcing Equipment (PSE) functionality, providing strong compatibility to connect major brands of network cameras that comply with ONVIF and RTSP standards.

Applications

• Enterprise Security
• Traffic Management
• Public Safety
• Environmental Protection
• Smart Cities
• Home Security

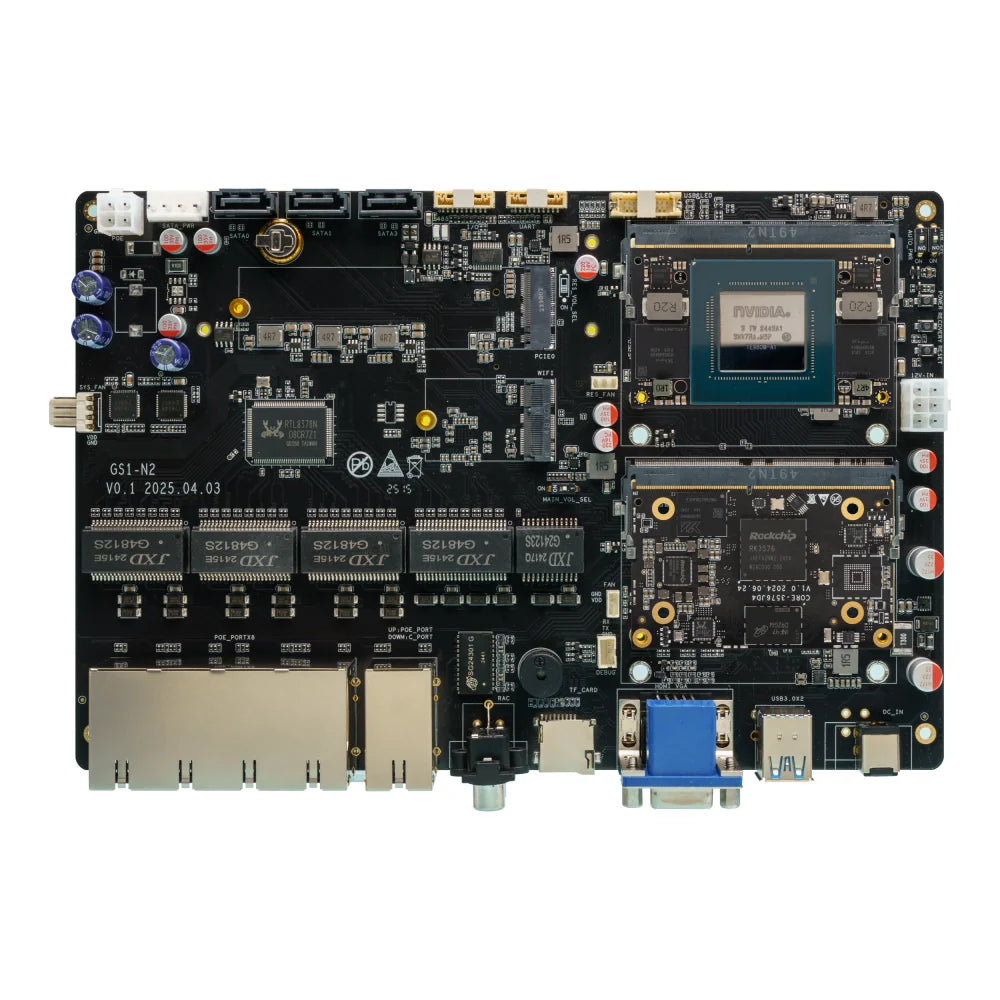

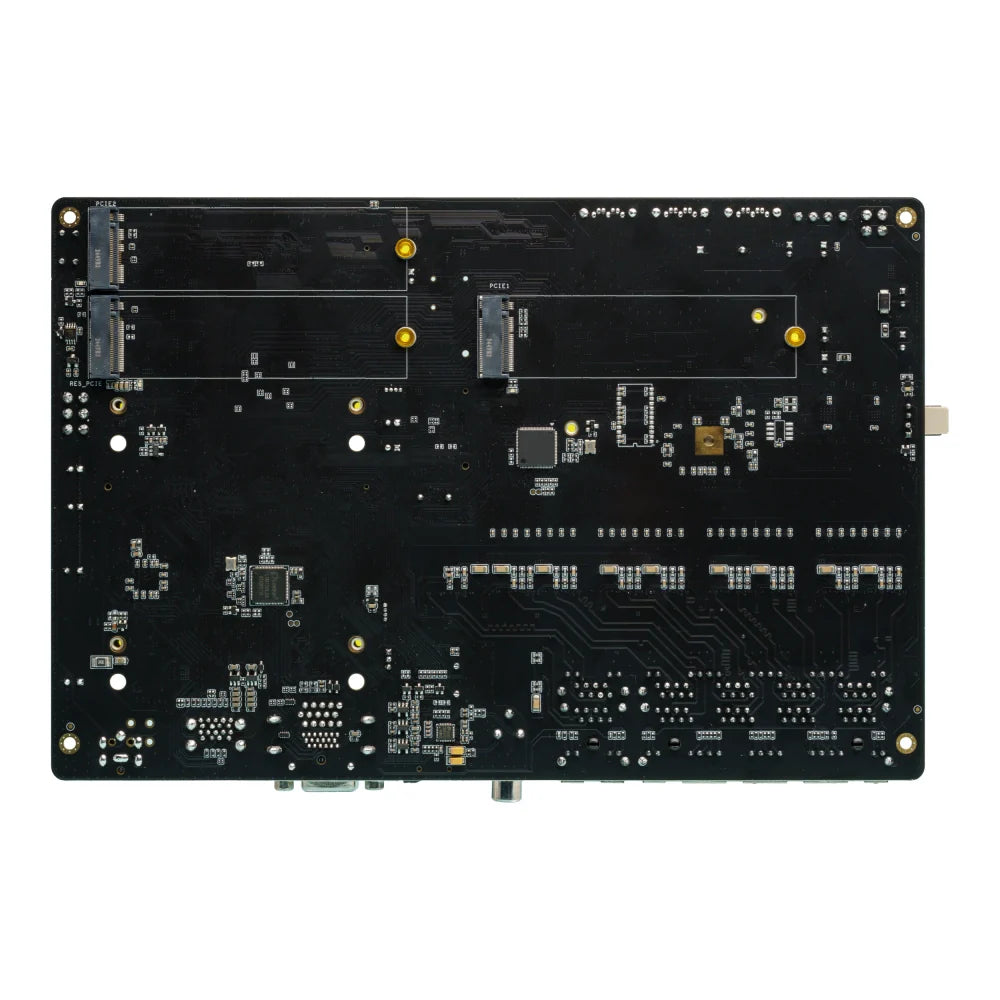

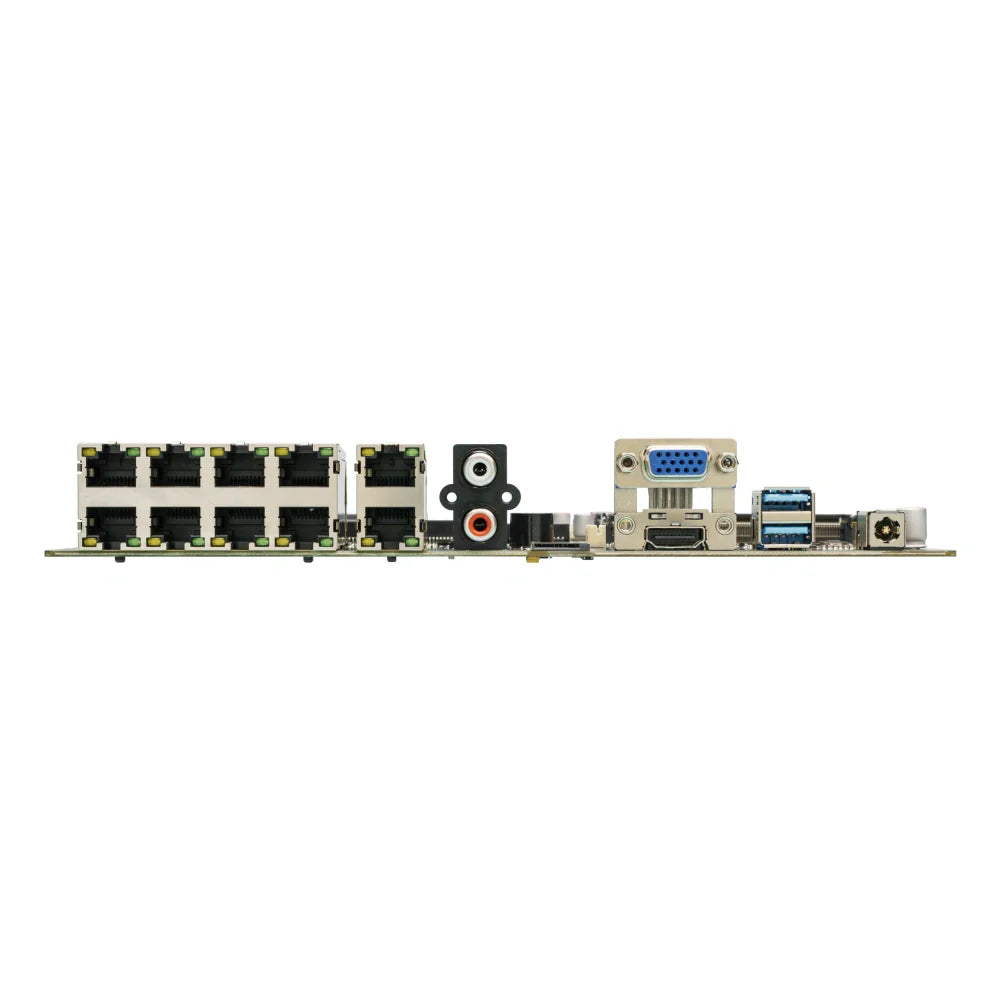

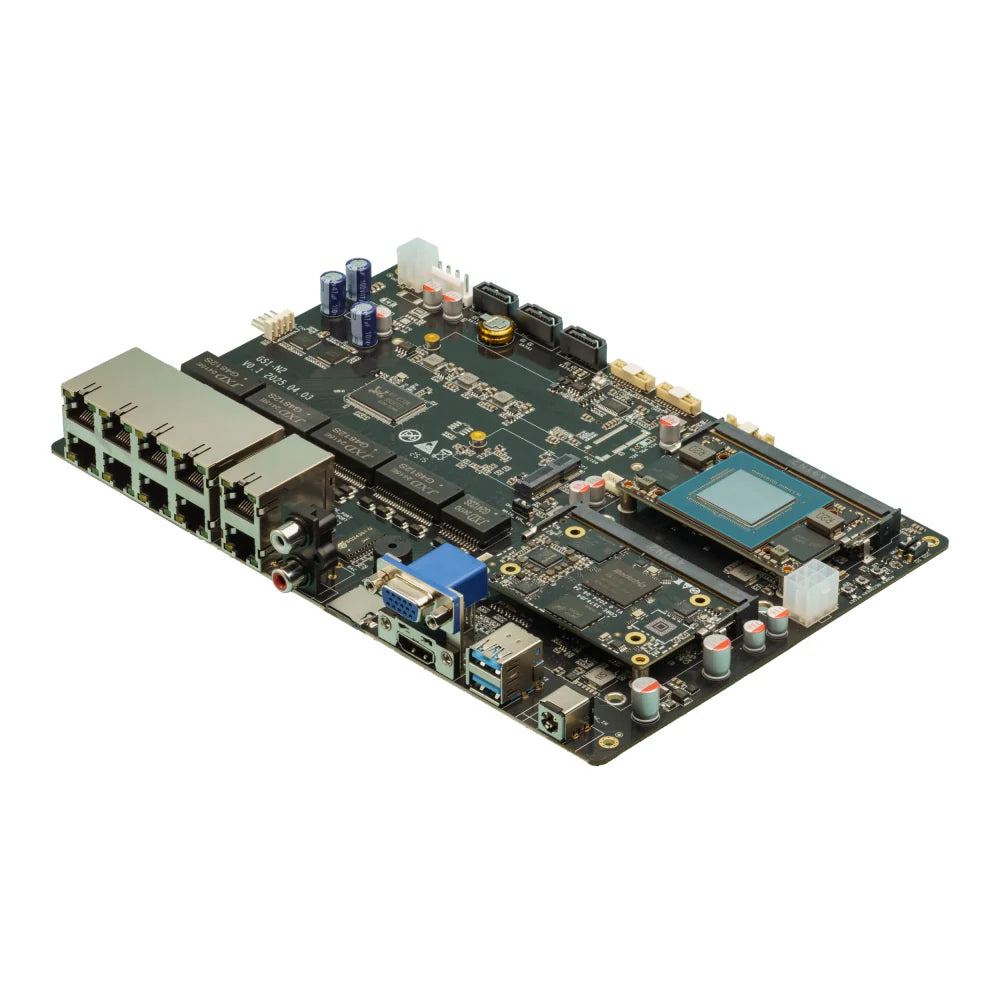

Hardware Overview
