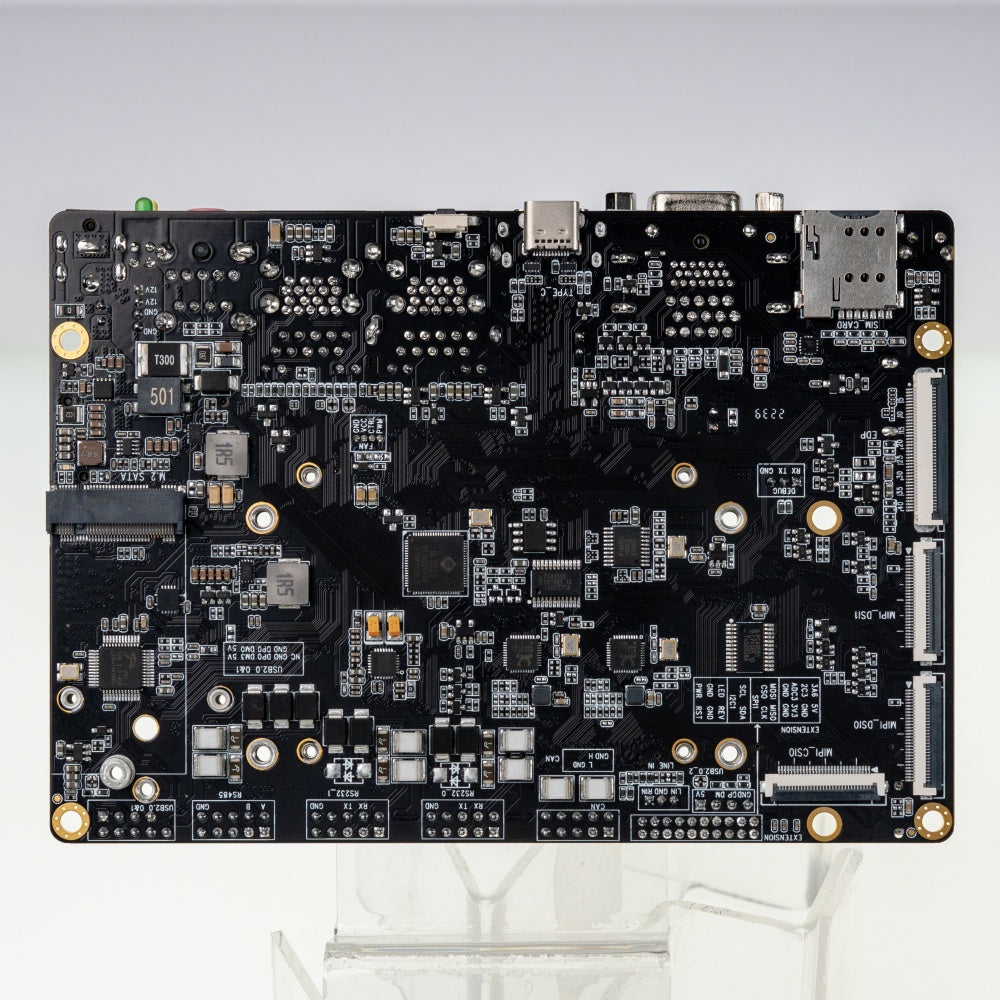

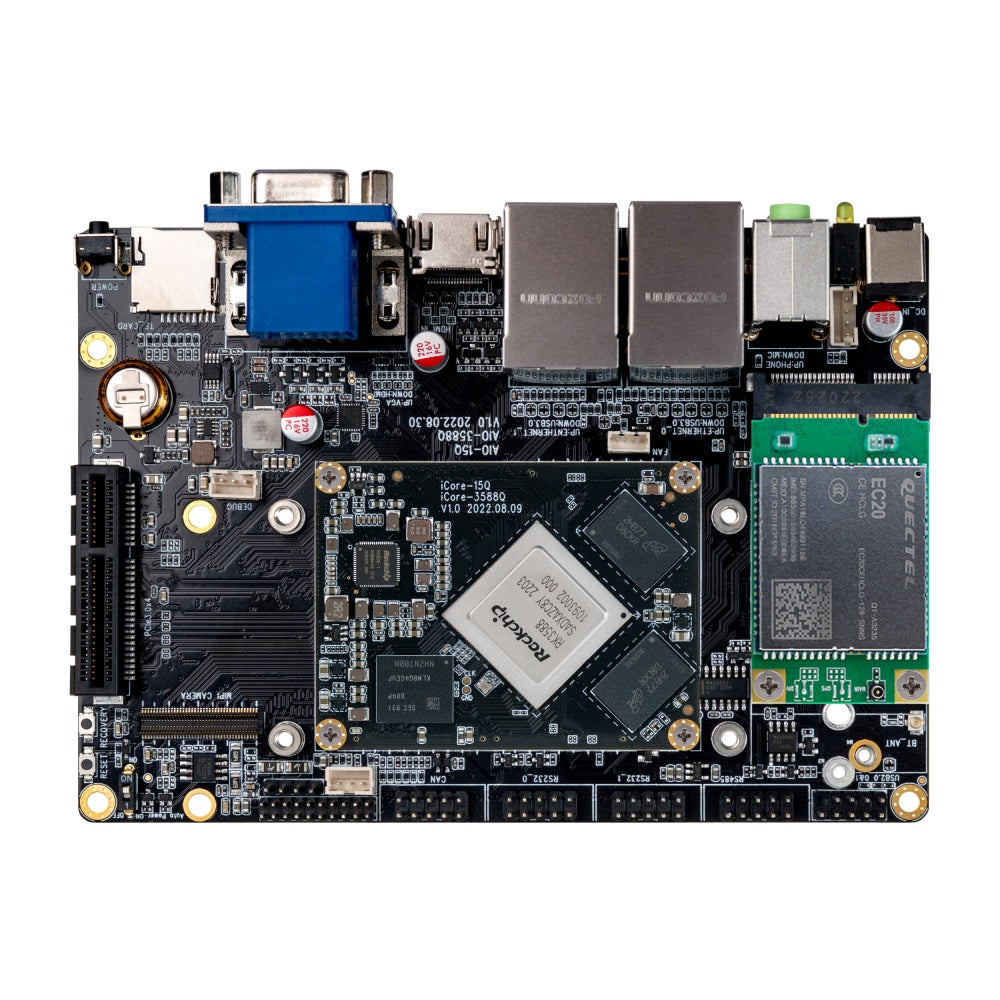

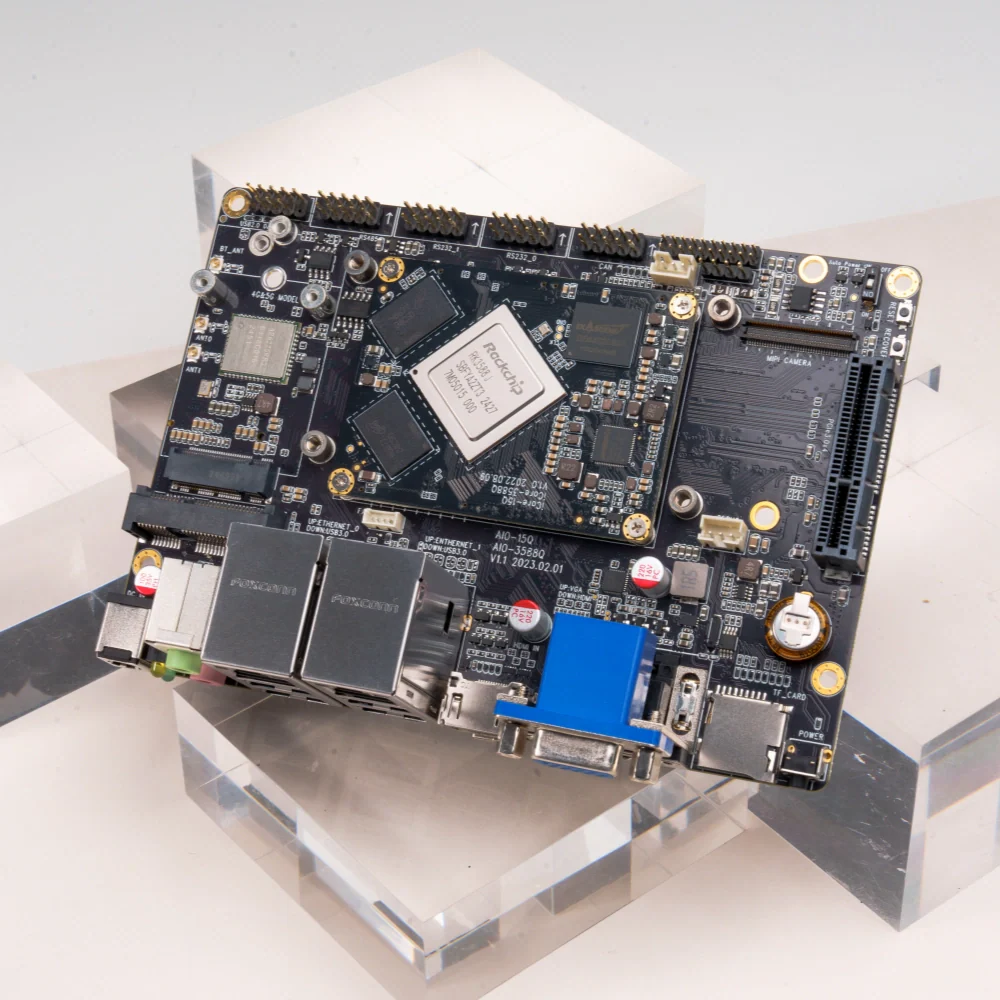

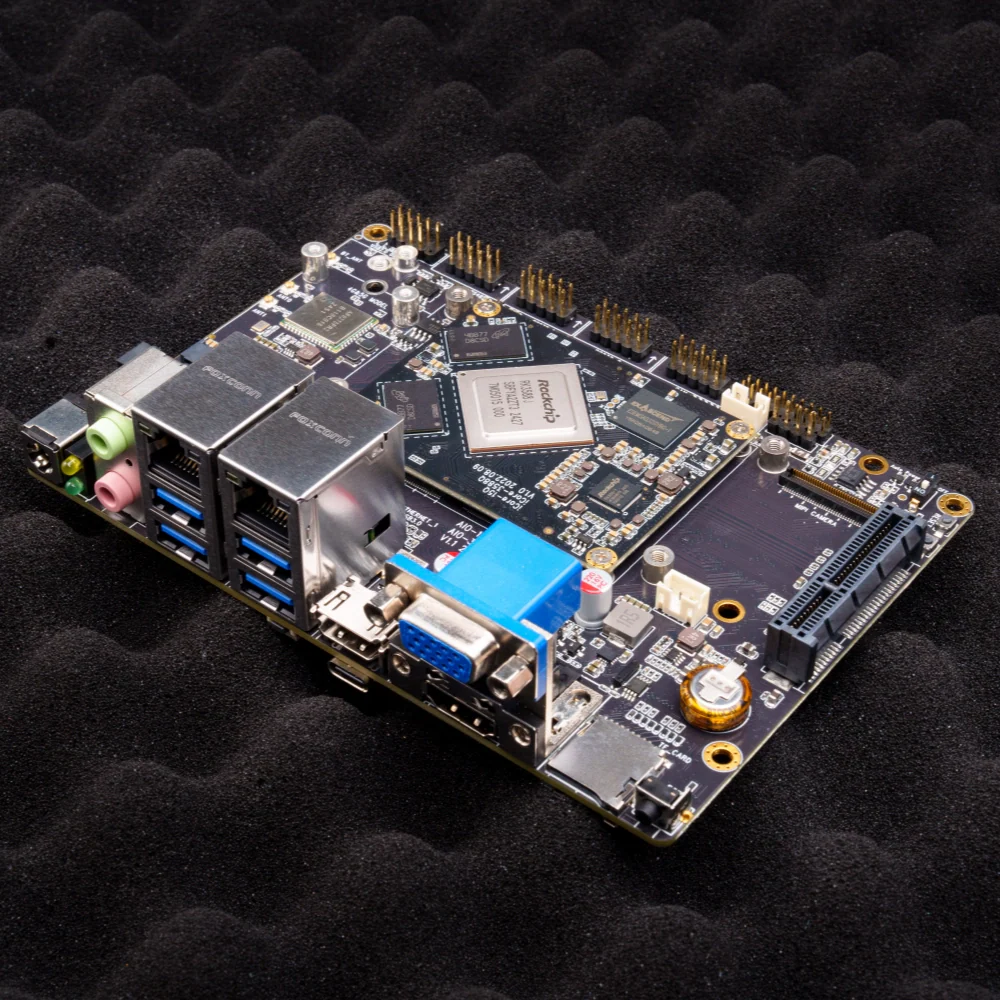

AIO-3588Q 8K AI ARM Motherboard

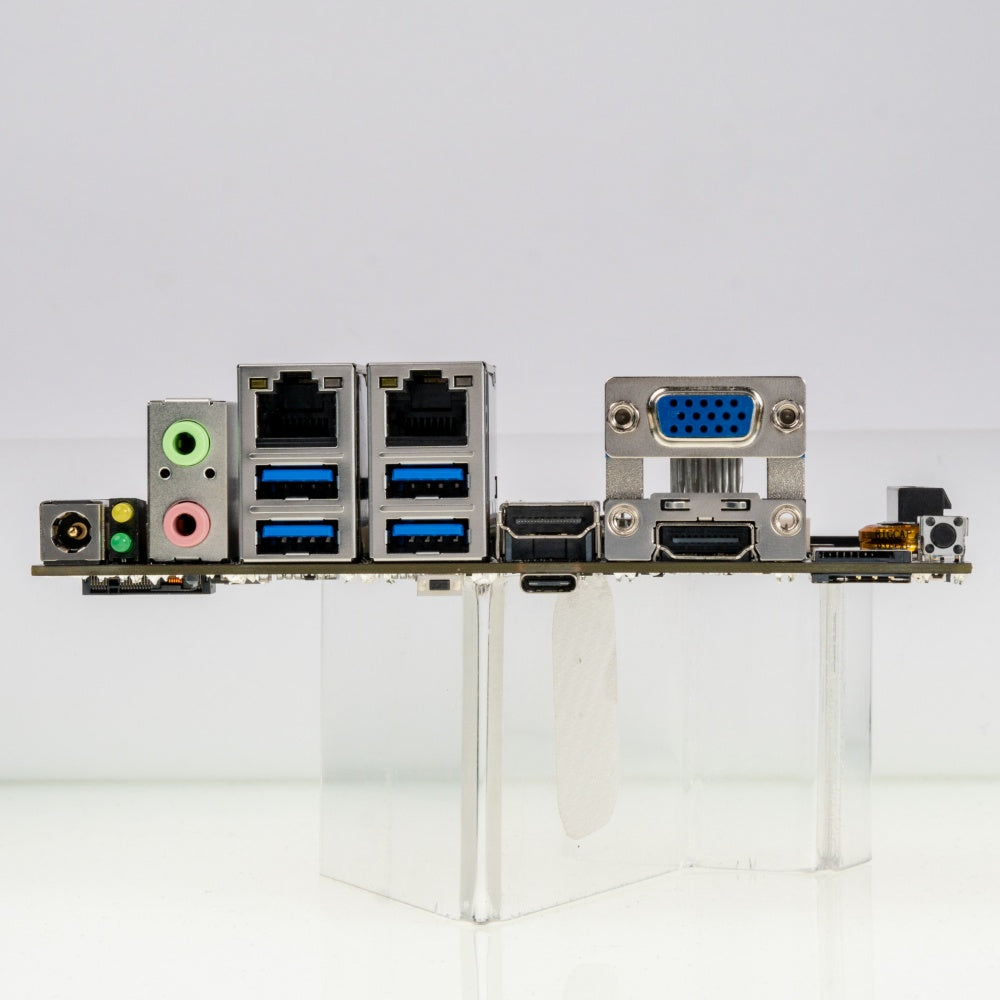

AIO-3588Q has rich interfaces, including Gigabit Ethernet, WiFi 6, 5G/4G expansion, rich video input and output interfaces, and M.2 SATA SSD. It can be widely used in ARM PC, edge computing, cloud terminals, cloud servers, industrial control, smart vehicles and other fields.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• New-gen AIoT SoC: RK3588 Series: RK3588 is Rockchip's new generation flagship AIoT chip, using 8nm lithography technology.
• 6 TOPS Powerful Computing Power: Equipped with a powerful NPU with 6 TOPS computing power, it supports INT4/INT8/INT16 mixed operations and TensorFlow/MXNet/PyTorch/Caffe framework switching. Its good compatibility can meet the edge computing needs of terminal devices.
• 8K Experience: The motherboard supports 8K@60fps H.265/VP9 video decoding, bringing true 8K high-definition display and exquisite picture quality. It is fully compatible with OpenGL ES 1.1, 2.0, 3.2, OpenGL ES 2.2, and Vulkan 1.2. The 2D hardware engine significantly improves display performance, bringing a smoother operating experience and meeting users' diverse viewing needs.
• Multi-channel Input and Output: The motherboard has HDMI RX2.0/MIPI-CSI/DP1.4/8T1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DP1.4 video input interface, supports multi-channel 8K video output and 4K video input, can achieve up to seven-screen display, provides up to 16-channel 1080P@30fps cameras, and 4, 6, and 8-channel wide-angle seamless stitching.
• Super-large 32GB RAM: The motherboard can be configured up to 32GB, breaking through previous memory limitations, bringing faster response speeds, and meeting product demands for large memory and high storage capacity.
• M.2 SATA3.0 /PCIe SSD Expansion: M.2 SATA3.0/PCIe NVMe SSD (2242) allows easy expansion of devices to TB storage capacity.
• PCIe 3.0 for High-speed Transmission: Onboard standard PCIe 3.0 (4 Lane) interface, extremely fast and stable transmission speed, can connect to standard PCIe 3.0 devices.

Feature

• ARM PC
• Edge Computing
• Industrial Control
• Cloud Servers
• Cloud Terminals
• Smart Vehicles
