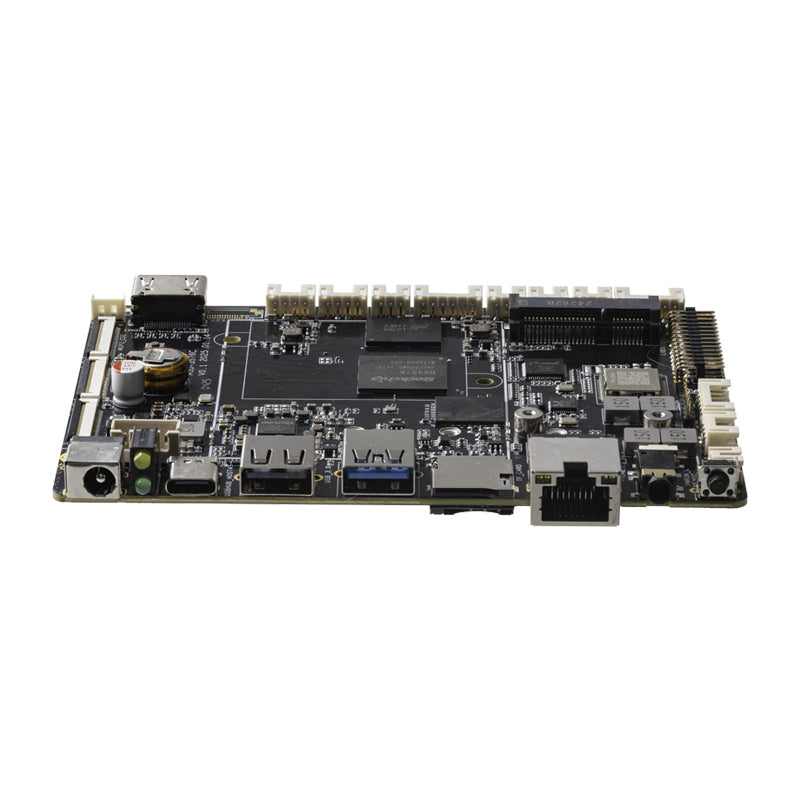

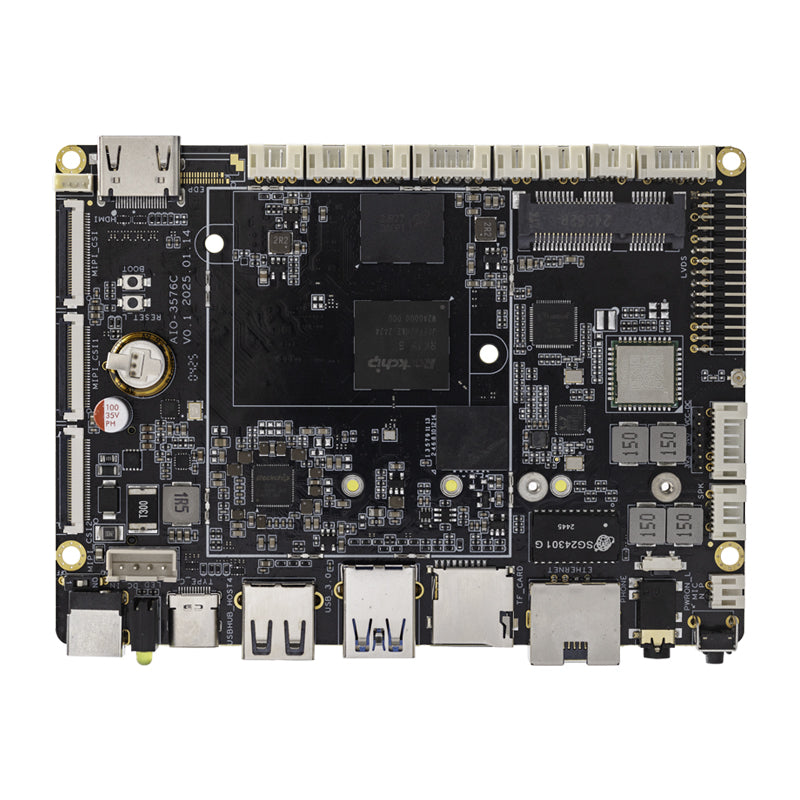

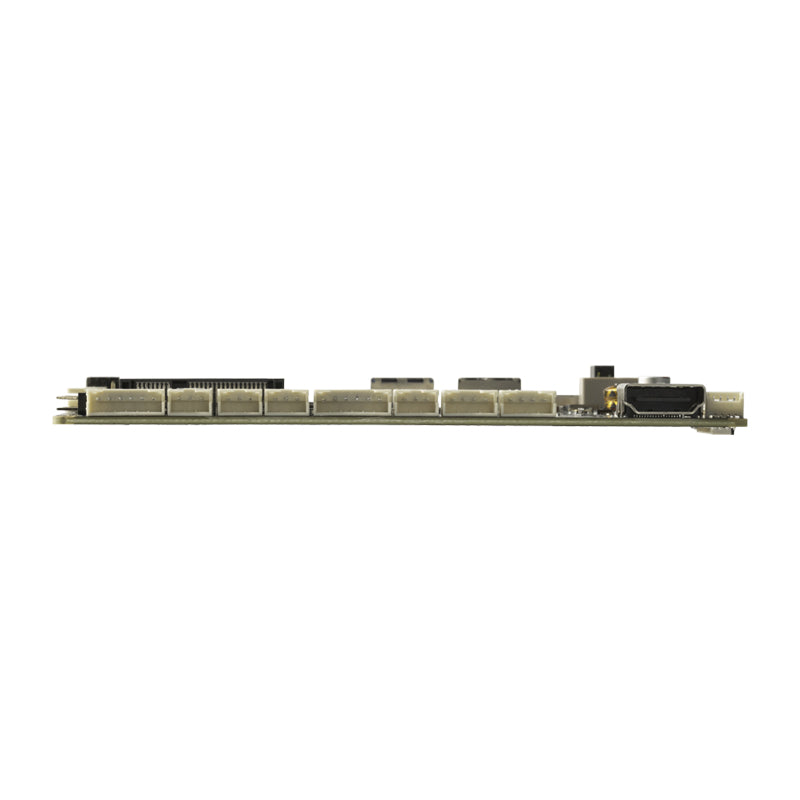

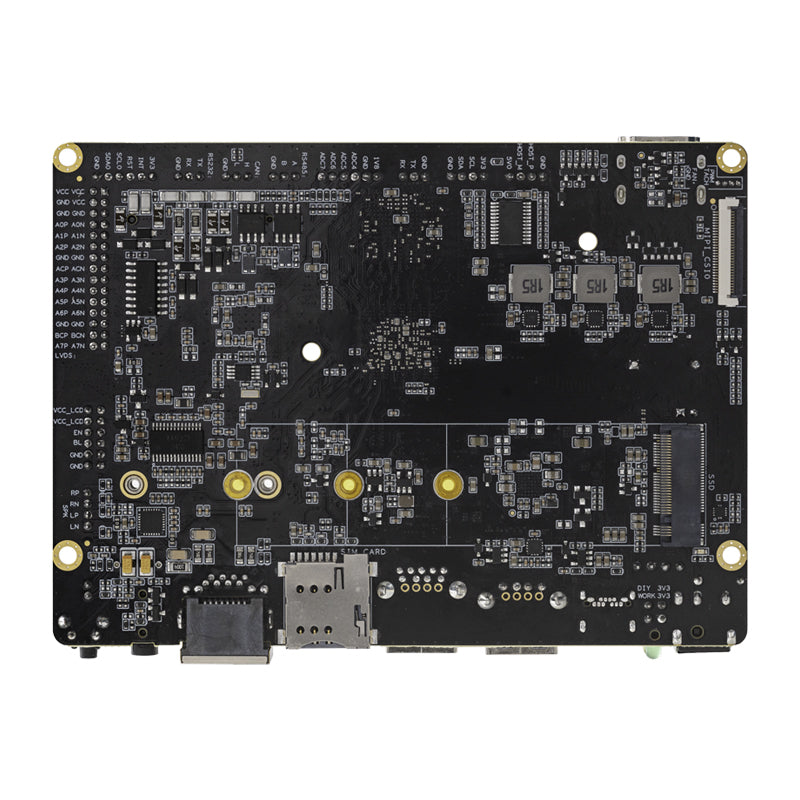

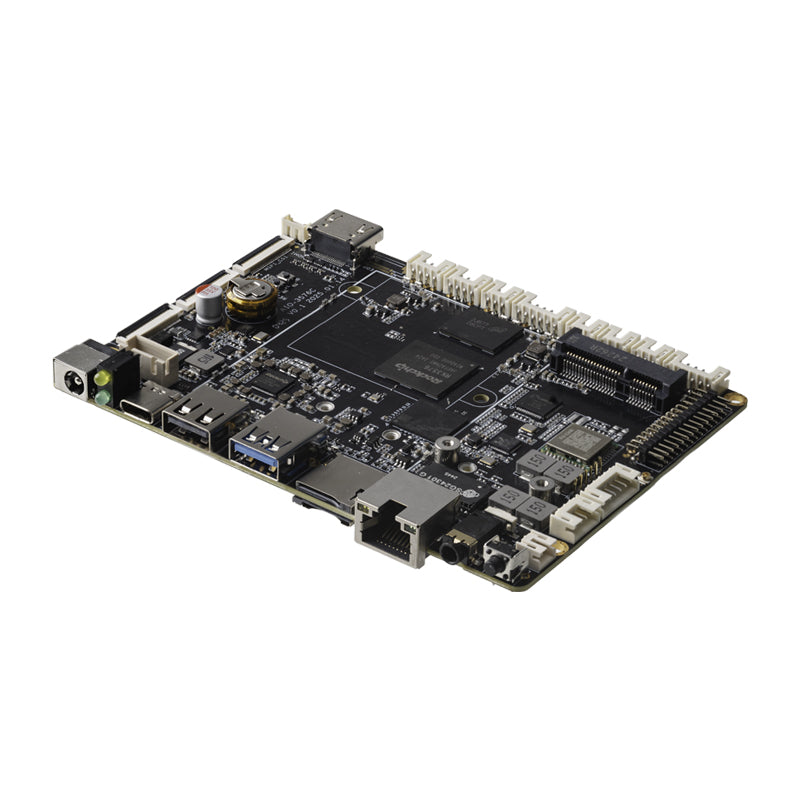

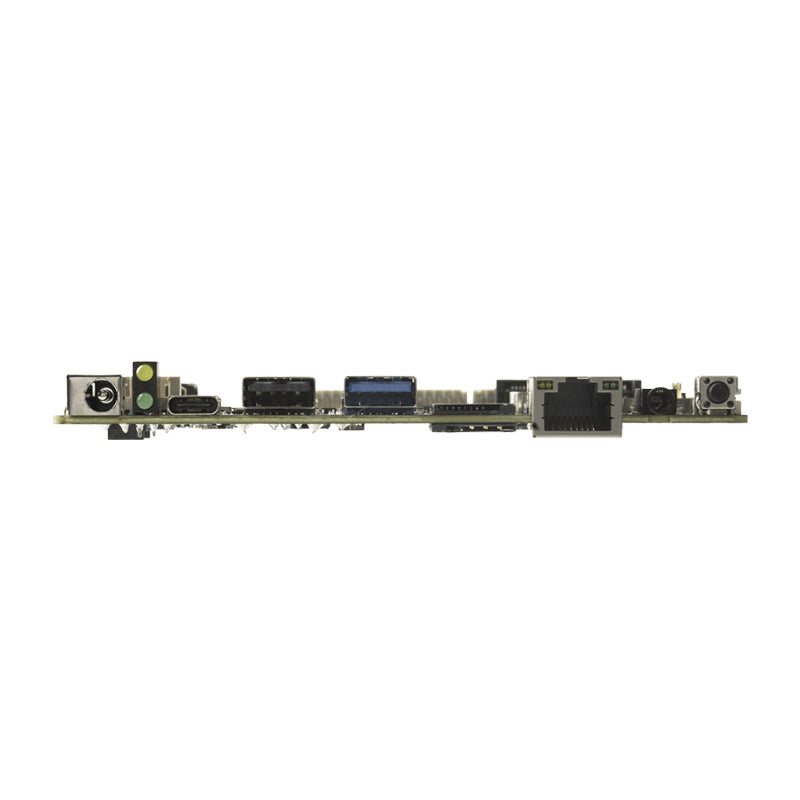

AIO-3576C ARM AIOT Industrial Edge Motherboard

The AIO-3576C industrial motherboard is a high-performance computing solution designed for AI and multimedia applications, featuring 6 TOPS of NPU computing power for efficient AI inference and edge computing. It supports the private deployment of large-scale AI models, enabling secure and localized processing without cloud dependency. With triple independent display outputs, it delivers flexible multi-screen configurations for digital signage, control systems, and interactive kiosks. Additionally, it provides robust 4K video encoding and decoding capabilities, ensuring smooth ultra-high-definition media processing for applications like video analytics, surveillance, and multimedia broadcasting.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• Next-Generation AIoT Chip RK3576: The chip is equipped with Rockchip RK3576, adopts big.LITTLE architecture (4×A72 + 4×A53), uses advanced process technology, and has a main frequency of up to 2.2GHz, providing strong support for high-performance computing and multi-tasking. It is equipped with Mali-G52 MC3 GPU, providing 145G FLOPS performance, which can achieve efficient heterogeneous computing and meet the needs of graphics-intensive applications.
• 6 TOPS Computing Power, Supports YOLO Algorithm: The 6 TOPS NPU supports INT4/INT8/INT16/FP16/BF16/TF32 operations with dual-core collaborative/independent execution, enabling multi-task parallelism across diverse scenarios. It accelerates YOLO-based real-time object detection, delivering faster, more accurate multi-object recognition for AI applications.
• Triple Independent Displays: It supports multiple display interfaces such as HDMI, MIPI DSI, LVDS, etc., and realizes three independent displays with 4K@120Hz ultra-clear resolution to meet the diverse display needs of various scenarios.
• Meets Industrial Application Requirements: The AIO-3576C integrates industrial-grade features including real-time networking, Flexbus, hardware isolation, and DSMC, coupled with RTLinux kernel support for superior real-time performance, making it ideal for diverse industrial applications.

Hardware Overview
