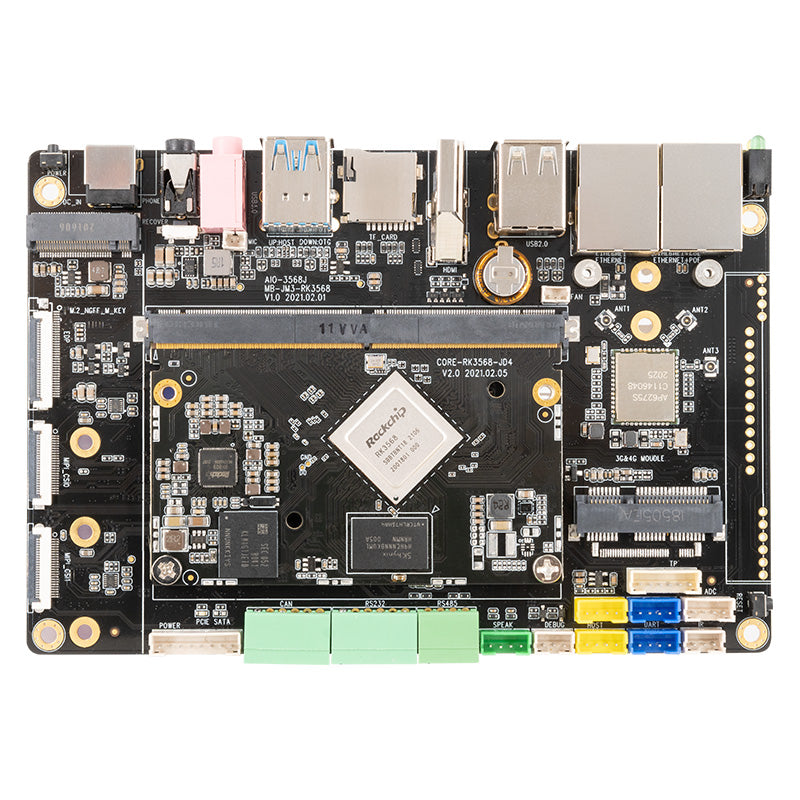

AIO-3568J Quad-Core ARM AI Motherboard

The AIO-3568J features a Rockchip RK3568 quad-core processor with dual-core GPU and high-performance NPU, supporting up to 8GB RAM. It includes M.2 and SATA3.0 interfaces, POE+ power supply, WiFi 6, and 5G/4G connectivity. With rich I/O options, it's ideal for smart NVRs, cloud terminals, IoT gateways, and industrial control applications.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• RK3568 Quad-core 64-bit Processor: RK3568 quad-core 64-bit Cortex-A55 processor adopts the new ARM v8.2-A architecture, with a main frequency of up to 2.0GHz, greatly improving efficiency. It adopts 22nm lithography process, low power consumption and high performance.
• Integrated Coprocessor: It integrates dual-core GPU, high-performance VPU and efficient NPU. GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1. VPU can realize 4K 60fps H.264/VP9 video decoding and 1080P 60fps H.264 video encoding. NPU supports one-click switching of mainstream frameworks such as Caffe/TensorFlow.
• Various Display Interfaces: The motherboard is equipped with MIPI-CSI x2, MIPI-DSI x2, HDMI2.0, and EDP video interfaces, supporting up to three-screen output and different display effects. It has a built-in 8M ISP and supports dual cameras and HDR. The video input interface can be connected to one or more external cameras.
• Dual Gigabit Ethernet Ports: Equipped with dual adaptive RJ45 Gigabit network ports, it can access and transmit internal and external network data, improving network transmission efficiency. The LAN (POE) network port supports POE+ (802.3AT, output power 30W) power supply, which can power the device while transmitting network data to ensure normal operation of the device.

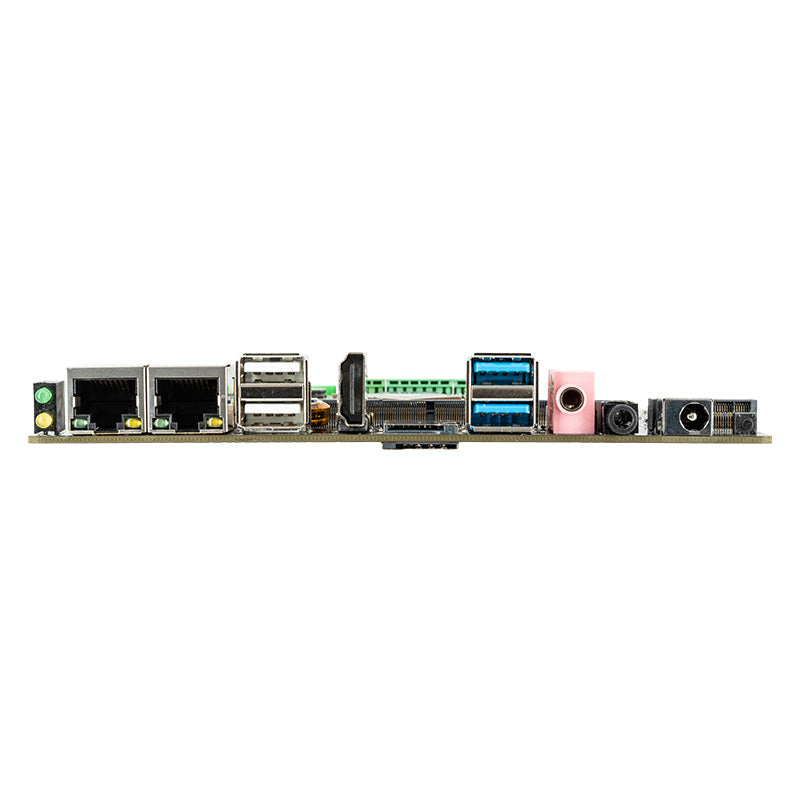

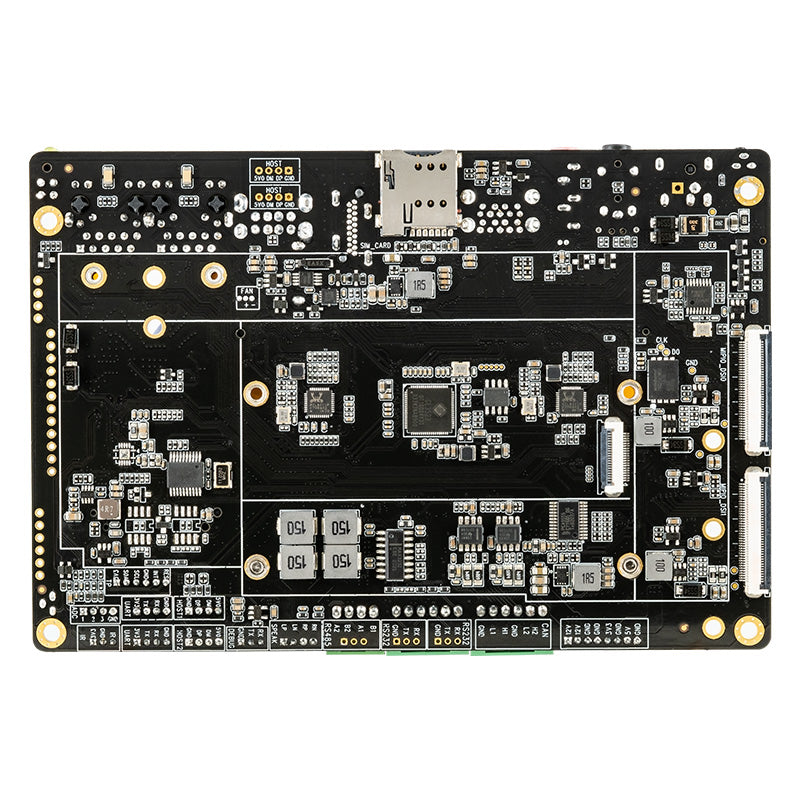

Hardware Overview
