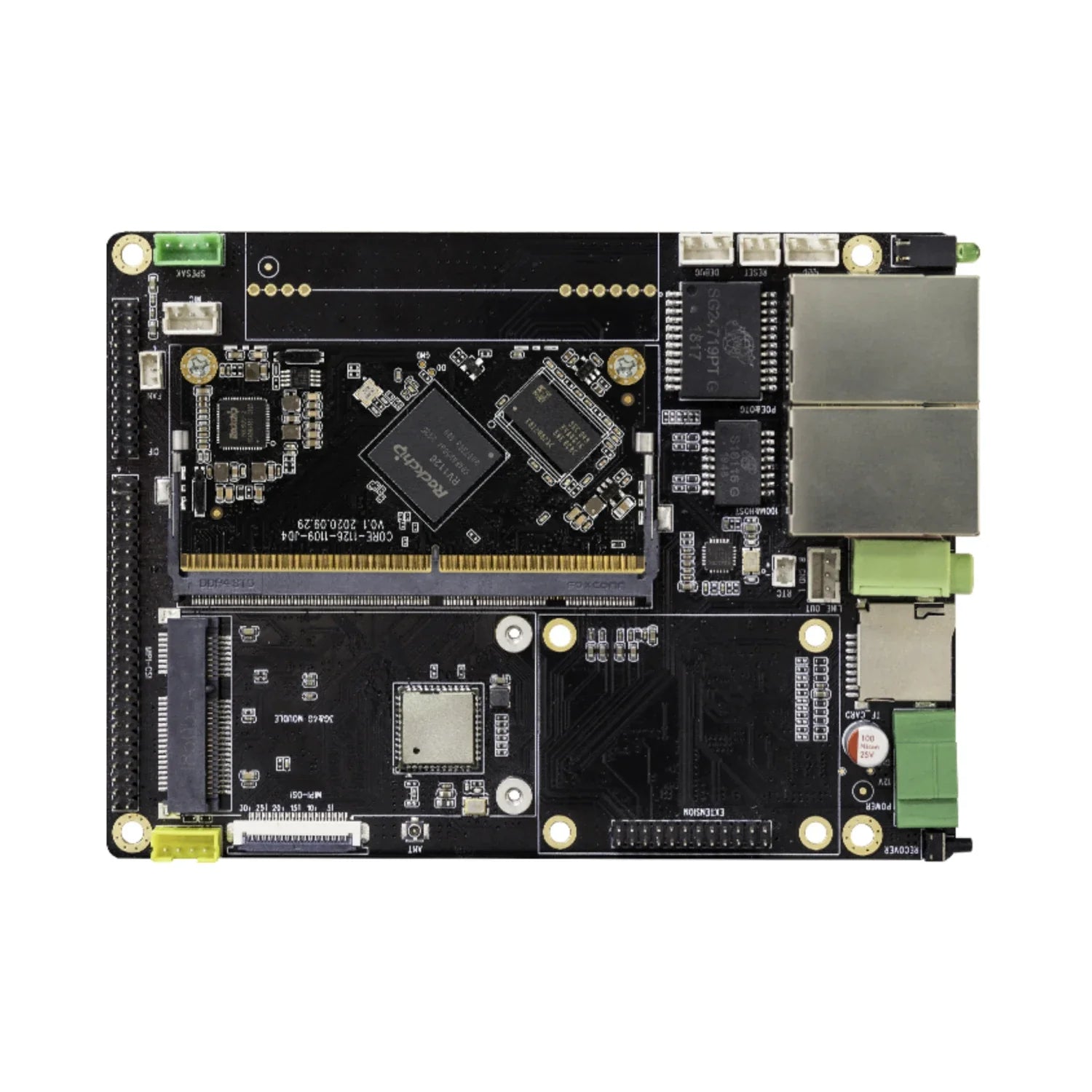

AIO-1126-JD4 ARM Motherboard

The AIO-1126-JD4 ARM motherboard is equipped with Rockchip RV1126 processor and NPU with up to 2.0Tops computing power, which can achieve efficient face recognition and detection. The motherboard supports multi-channel video encoding and decoding and provides rich expansion interfaces. The product can be widely used in face recognition, access control, smart security, IP cameras, smart doorbells and cat eyes, driving recorders, smart finance and smart construction sites.

• Product Datasheet: Click Here
• Product Wiki: Click Here

Feature

• Quad-core High-performance AI Processor: Rockchip RV1126 AI vision processor adopts quad-core 32-bit ARM Cortex-A7 architecture, integrates NEON and FPU, has a main frequency of up to 1.5GHz, supports FastBoot and TrustZone technologies, and multiple encryption engines.
• High-performance NPU With 2.0 TOPS: It has a built-in 2.0Tops NPU, supports INT8/INT16 mixed operations, supports direct conversion and deployment of algorithms such as TensorFlow, PyTorch, Caffe, MxNet, DarkNet, ONNX, and provides complete development tools and AI algorithms.
• 4K Video Encoding And Decoding: The motherboard integrates Video CODEC, supports 4K@30FPS, supports multi-channel video encoding and decoding, ensures low bit rate, low latency encoding, and perceptual encoding with smaller footprint.
• Multi-level Noise Reduction, Clear Imaging: RV1126 has functions such as multi-level noise reduction, 3-frame HDR, sharpness and contrast adjustment, intelligent automatic exposure, automatic white balance, distortion correction, etc. It can not only meet the dynamic range of various scenes, but also meet the exclusive needs of full-color night vision.

Hardware Overview
