4G Module Kit EG25-G
4G Module Kit EG25-G
Regular price
$24.00 USD
Regular price
Sale price
$24.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

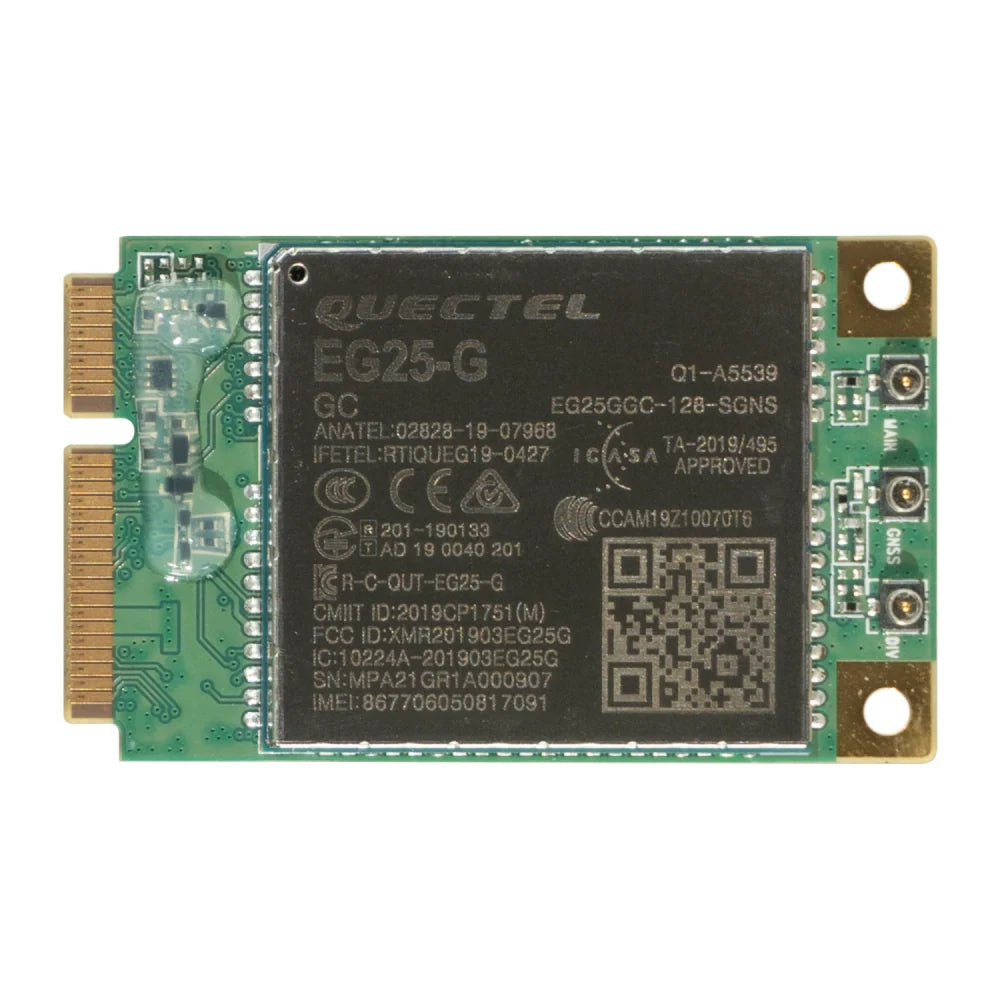

EG25-G is a LTE Cat 4 wireless communication module designed by CTC for M2M and IoT. It adopts 3GPP Rel.11 LTE technology and supports a maximum downlink rate of 150 Mbps and a maximum uplink rate of 50 Mbps. At the same time, the EG25-G package is compatible with FarEasTone UMTS/HSPA+ UC200T series modules. Multi-mode LTE standard EC2x series (EC25 series, EC21 series and EC20-CE)/EC200A series/EG21-G modules can be efficiently designed and switched in real time.
- Product Wiki: Click Here
Parameters
| Working Frequency Band | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| Data Transmission | LTE-FDD: Max 150 Mbps(DL) Max 50Mbps(UL) LTE-TDD: Max 130 Mbps(DL) Max30 Mbps(UL) DC-HSDPA: Max 42 Mbps(DL) (UL) HSUPA: Max 5.76 Mbps(UL) WCDMA: Max 384 kbps(DL) Max 384 kbps(UL) EDGE: Max 296 kbps(DL) Max236.8 kbps(UL) GPRS: Max107 kbps(DL) Max 85.6 kbps(UL) |
| Structure Size | 29.0 mm × 32.0 mm × 2.4 mm Weighs about 4.9 g |
| Authentication | Deutsche Telekom Verizon/AT&T/Sprint/U.S. Cellular/T-Mobile Telus/Rogers* SRRC/CCC/NAL GCF CE UKCA PTCRB FCC IC Anatel IFETEL KC NCC JATE/TELEC RCM NBTC IMDA ICASA RoHS WHQL |
